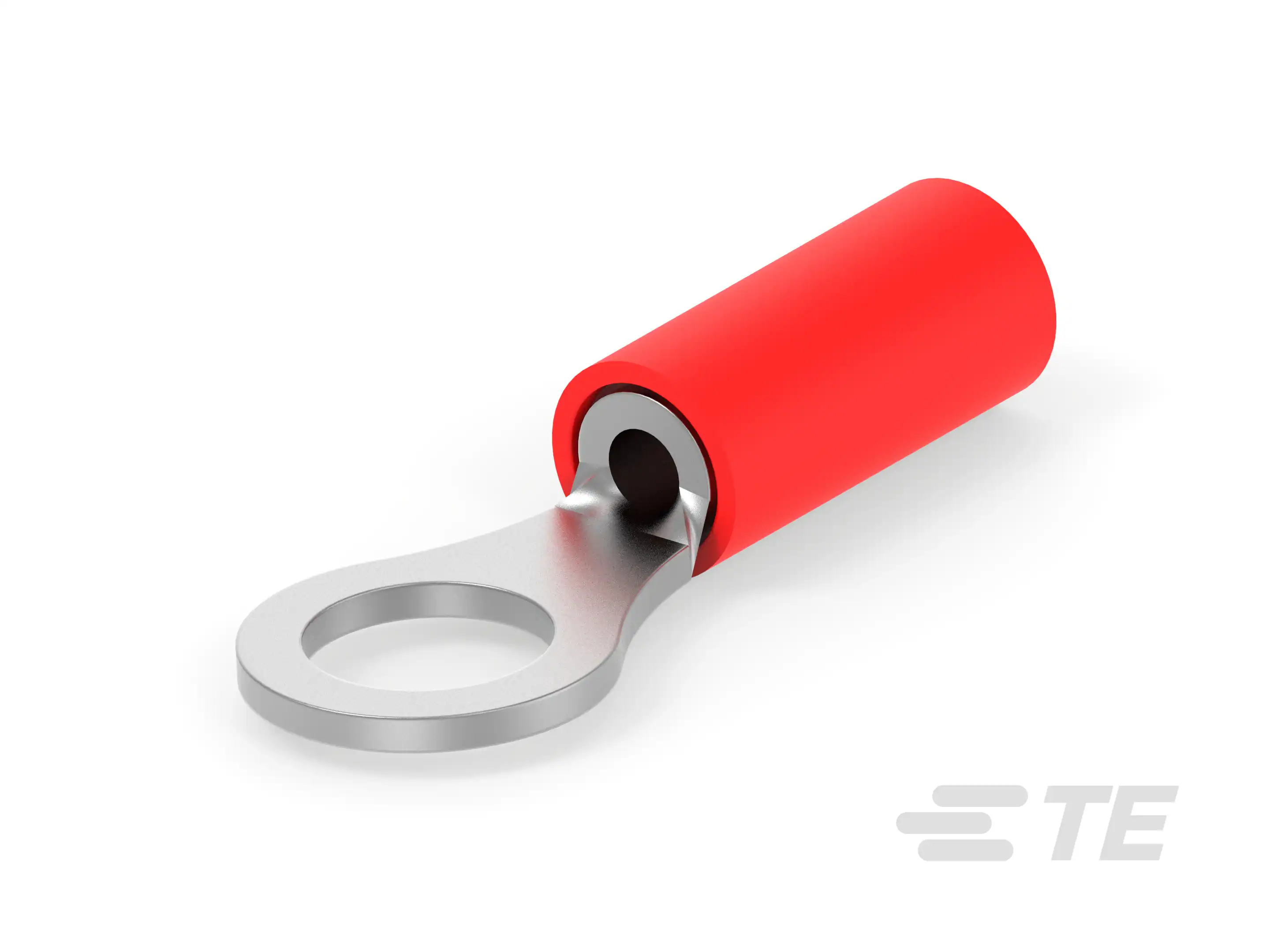

RING TONGUE TERMINAL, M5, #10, 16 AWG, 1.6 MM², PIDG SERIES, RED
130005
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL, M5, #10, 16 AWG, 1.6 MM², PIDG SERIES, RED
Description
General part information
130005
Closed Ring Tongue Terminal, 22 – 16 AWG, M5 Stud, 5.2 mm [.205 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG
Technical Specifications
Parameters and characteristics for this part
| Specification | 130005 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 0.828 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M5 Stud, M5 |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.033 in |
| Width - Outer Edges | 0.312 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
