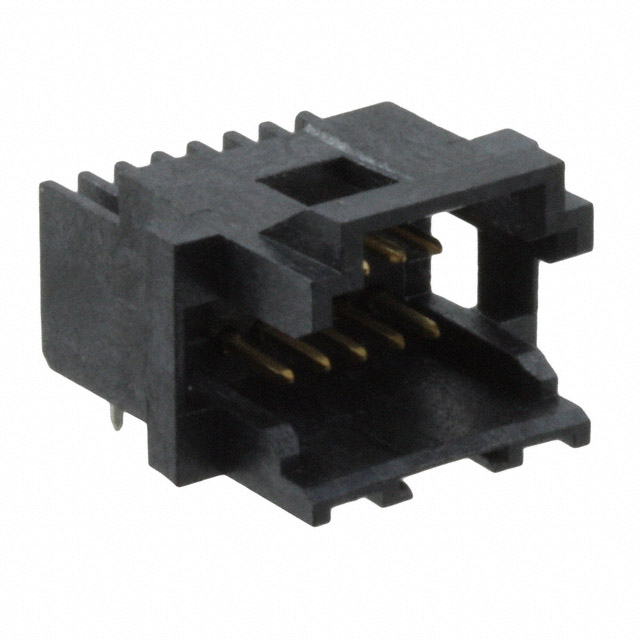

Specification	5-104069-4

Applications	Medical, Automotive, Telecommunications, General Purpose
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Finish Thickness - Post	150 µin
Contact Length - Mating	0.125 in
Contact Length - Post	0.1 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	0.29 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-65 °C
Pitch - Mating	0.05 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 2 Wall
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	30 V

AMPMODU System 50 Series

...

Part	Overall Contact Length	Contact Material	Termination	Contact Finish - Mating	Contact Shape	Insulation Height	Voltage Rating	Contact Length - Post	Insulation Material	Insulation Color	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Style	Contact Finish - Post	Connector Type	Pitch - Mating	Number of Positions	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Length - Mating	Material Flammability Rating	Contact Type	Number of Rows	Shrouding	Applications	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 104178-1	0.32 in	Copper Alloy	Solder	Gold	Square	0.1 in	30 V	0.1 in	Thermoplastic	Black	Through Hole	105 °C	-65 °C	Push-Pull	Board Board or Cable	Tin-Lead	Header	0.05 in	4	All	30 µin	0.12 in	UL94 V-0	Male Pin	1	Unshrouded	Automotive General Purpose Medical Telecommunications	150 µin
