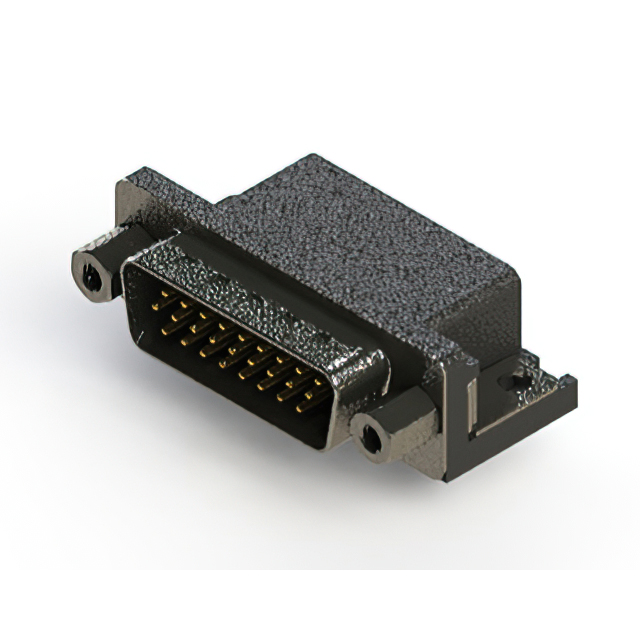

633-026-663-013
ActiveEDAC Inc.
633 SERIES RIGHT ANGLE D-SUB PLU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 633-026-663-013 |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Mounting Brackets, Shielded |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Termination | Solder |
633-026 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Shell Material, Finish | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Backset Spacing | Backset Spacing | Features | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish | Material Flammability Rating | Dielectric Material | Contact Type | Number of Rows | Number of Positions | Connector Style | Connector Type | Termination | Current Rating (Amps) | Contact Material | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.76 Ám | 30 Áin | Board Edge Right Angle Through Hole | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | 85 °C | -55 °C | 8.89 mm | 0.35 in | Grounding Indents Mounting Brackets Shielded | 2 | (DA A) High Density | Gold | UL94 V-0 | Polyester Thermoplastic | Signal | 3 | 26 | D-Sub High Density | Male Pins Plug | Solder | 3 A | Copper Alloy | |
EDAC Inc. | 0.76 Ám | 30 Áin | Board Edge Right Angle Through Hole | Nickel Plated Steel | Housing/Shell (Unthreaded) | 125 °C | -55 °C | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | (DA A) High Density | Gold | UL94 V-0 | Polyester Thermoplastic | Signal | 3 | 26 | D-Sub High Density | Male Pins Plug | Solder | 3 A | Copper Alloy | |
EDAC Inc. | 0.38 µm | 15 µin | Board Edge Right Angle Through Hole | Nickel Plated Steel | Housing/Shell (4-40) | 125 °C | -55 °C | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | (DA A) High Density | Gold | UL94 V-0 | Polyester Thermoplastic | Signal | 3 | 26 | D-Sub High Density | Male Pins Plug | Solder | 3 A | Copper Alloy | |
EDAC Inc. | Board Edge Right Angle Through Hole | Nickel Plated Steel | 4-40 | 125 °C | -55 °C | 8.89 mm | 0.35 in | Grounding Indents Mounting Brackets Shielded | 2 | (DA A) High Density | Gold | UL94 V-0 | Polyester Thermoplastic | Signal | 3 | 26 | D-Sub High Density | Male Pins Plug | Solder | 3 A | Copper Alloy | Flash | ||
EDAC Inc. | Board Edge Right Angle Through Hole | Nickel Plated Steel | Housing/Shell (Unthreaded) | 85 °C | -55 °C | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | (DA A) High Density | Gold | UL94 V-0 | Polyester Thermoplastic | Signal | 3 | 26 | D-Sub High Density | Male Pins Plug | Solder | 3 A | Copper Alloy | Flash | ||
EDAC Inc. | Board Edge Right Angle Through Hole | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | 85 °C | -55 °C | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | (DA A) High Density | Gold | UL94 V-0 | Polyester Thermoplastic | Signal | 3 | 26 | D-Sub High Density | Male Pins Plug | Solder | 3 A | Copper Alloy | Flash | ||
EDAC Inc. | 0.76 Ám | 30 Áin | Board Edge Right Angle Through Hole | Nickel Plated Steel | Housing/Shell (4-40) | 125 °C | -55 °C | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | (DA A) High Density | Gold | UL94 V-0 | Polyester Thermoplastic | Signal | 3 | 26 | D-Sub High Density | Male Pins Plug | Solder | 3 A | Copper Alloy | |
EDAC Inc. | Board Edge Right Angle Through Hole | Nickel Plated Steel | 4-40 | 85 °C | -55 °C | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | (DA A) High Density | Gold | UL94 V-0 | Polyester Thermoplastic | Signal | 3 | 26 | D-Sub High Density | Male Pins Plug | Solder | 3 A | Copper Alloy | Flash | ||
EDAC Inc. | Board Edge Right Angle Through Hole | Nickel Plated Steel | Housing/Shell (M3) | 85 °C | -55 °C | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | (DA A) High Density | Gold | UL94 V-0 | Polyester Thermoplastic | Signal | 3 | 26 | D-Sub High Density | Male Pins Plug | Solder | 3 A | Copper Alloy | Flash | ||
EDAC Inc. | 0.38 µm | 15 µin | Board Edge Right Angle Through Hole | Nickel Plated Steel | Housing/Shell (Unthreaded) | 125 °C | -55 °C | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | (DA A) High Density | Gold | UL94 V-0 | Polyester Thermoplastic | Signal | 3 | 26 | D-Sub High Density | Male Pins Plug | Solder | 3 A | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 9.92 | |
Description
General part information
633-026 Series
26 Position D-Sub, High Density Plug, Male Pins Connector
