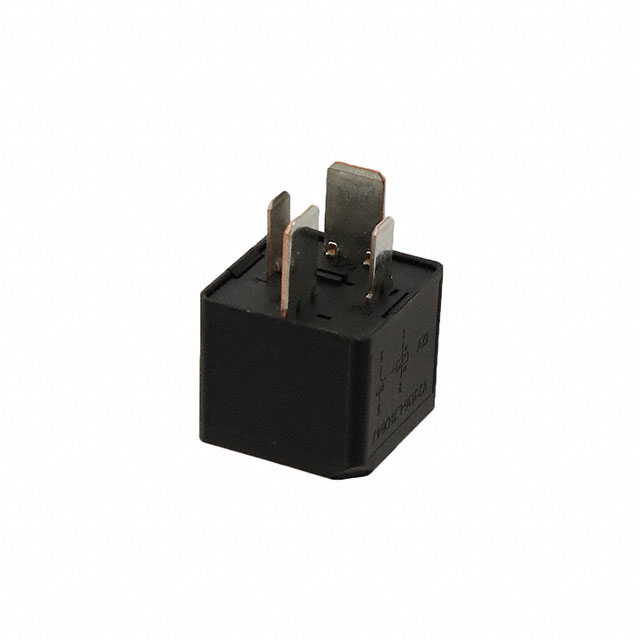

V23136-L0031-D642
ActiveTE Connectivity AMP Connectors
POWER FA V23136
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V23136-L0031-D642
ActiveTE Connectivity AMP Connectors
POWER FA V23136
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V23136-L0031-D642 |
|---|---|
| Coil Current | 480 mA |
| Coil Power | 1.3 W |
| Coil Resistance | 25 Ohms |
| Coil Type | Latching, Single Coil |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 70 A |
| Features | IP54 - Dust Protected, Water Resistant |
| Mounting Type | Socketable |
| Must Operate Voltage | 6 VDC |
| Operate Time | 1 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 2 ms |
| Switching Voltage [Max] | 14 VDC |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.91 | |
| 10 | $ 9.47 | |||
| 294 | $ 8.32 | |||
| 1176 | $ 7.75 | |||
V23136 Series
POWER FA V23136
| Part | Contact Form | Must Operate Voltage | Termination Style | Features | Coil Resistance | Coil Power | Coil Type | Coil Current | Contact Rating (Current) | Mounting Type | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Release Time | Contact Material | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors V23136-L0031-D642 | SPST-NO (1 Form A) | 6 VDC | Plug In, Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | 25 Ohms | 1.3 W | Latching, Single Coil | 480 mA | 70 A | Socketable | 1 ms | 125 °C | -40 °C | 12 VDC | 2 ms | Silver (Ag) | 14 VDC |
Description
General part information
V23136 Series
POWER FA V23136
