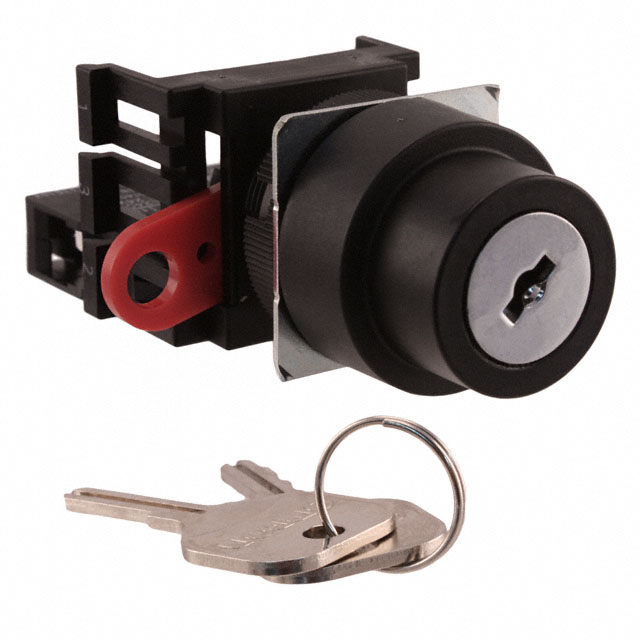

A22K-2ML-10
ObsoleteOmron Automation and Safety
SWITCH KEYLCK 2POS SPST 10A 110V
A22K-2ML-10
ObsoleteOmron Automation and Safety
SWITCH KEYLCK 2POS SPST 10A 110V
Description
General part information
A22K-2ML-10
Keylock Switch 2 Position SPST-NO 10A (AC) 110 VAC DC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | A22K-2ML-10 |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 90 ° |
| Circuit | SPST-NO |
| Current Rating | 10 A |
| Depth Behind Flange | 54.7 mm |
| Electrical Life (Cycles) | 500000 |
| Features | Oil-Resistant, IP65 |
| Mechanical Life (Cycles) | 500000 Cycles |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Removable Positions | Left |
| Switch Function | Off-On |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 110 V |
