PAG.M0.4GL.AC52A

Active

LEMO

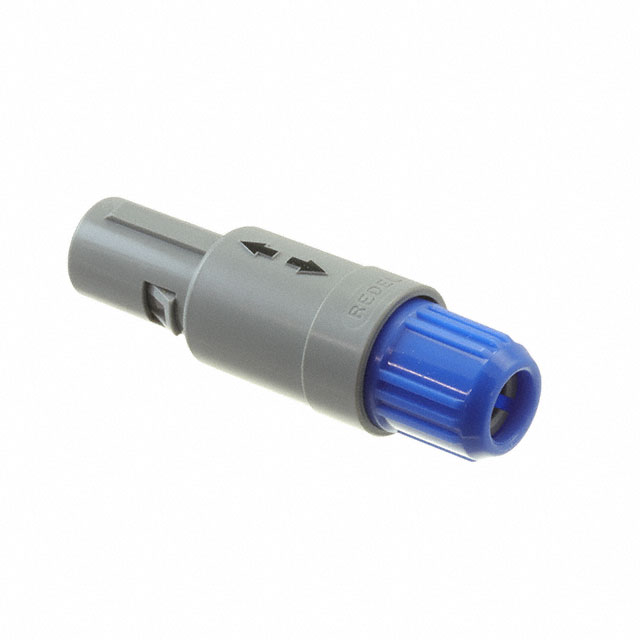

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PAG.M0.4GL.AC52A

Active

LEMO

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PAG.M0.4GL.AC52A	PAG.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)	Polysulfone (PSU), Polyetherimide (PEI)
Cable Opening	-	0.209 - 0.256 in
Cable Opening	-	5.3 - 6.5 mm
Cable Opening	-	2.7 mm
Cable Opening	-	0.154 in
Cable Opening	-	3.9 mm
Cable Opening	-	0.106 in
Cable Opening [Max] [custom]	0.205 in	0.205 in
Cable Opening [Max] [custom]	5.2 mm	5.2 mm
Cable Opening [Min] [custom]	0.157 in	0.157 in
Cable Opening [Min] [custom]	4 mm	4 mm
Color	Gray, Blue	Gray, Black, Blue, Green, Red, Yellow, White
Connector Type	Plug, Male Pins	Plug, Male Pins, Insert, Female Sockets, Plug Housing
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	8 A	3 - 10 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	Backshell	Backshell, Insert Only, Requires Shell
Housing Color	-	Black
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	4	2 - 9
Operating Temperature [Max]	150 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	G	G
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU), Polyetherimide (PEI)
Shell Size - Insert	M04	M08, M05, M06, M04, M09, M02
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Type	-	For Male Pins

PAG.M0 Series

CONN PLUG MALE 8P GOLD SLDR CUP

...

Part	Connector Type	Applications	Contact Finish - Mating	Insert Material	Features	Shell Size - Insert	Ingress Protection	Shielding	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Backshell Material, Plating	Mounting Type	Color	Orientation	Number of Positions	Current Rating (Amps)	Shell Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]	Termination
LEMO PAG.M0.8GL.AC52GZ	Male Pins, Plug	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Polyetheretherketone (PEEK)	Backshell	M08	IP50	Unshielded	Plastic	150 °C	-50 °C	Detent Lock, Push-Pull	Polysulfone (PSU)	Free Hanging (In-Line)	Gray	G	8	5 A	Polysulfone (PSU)	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PAG.M0.5TL.AC52N	Male Pins, Plug	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Polyetheretherketone (PEEK)	Backshell	M05	IP50	Unshielded	Plastic	170 °C	-50 °C	Detent Lock, Push-Pull	Polyetherimide (PEI)	Free Hanging (In-Line)	Black	G		7 A	Polyetherimide (PEI)	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PAG.M0.6GL.CC65N	Male Pins, Plug	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Polyetheretherketone (PEEK)	Backshell	M06	IP50	Unshielded	Plastic	150 °C	-50 °C	Detent Lock, Push-Pull	Polysulfone (PSU)	Free Hanging (In-Line)		G	6	6 A	Polysulfone (PSU)					0.209 in, 0.256 in	5.3 mm, 6.5 mm	Crimp
LEMO PAG.M0.5GL.AC52GZ	Male Pins, Plug	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Polyetheretherketone (PEEK)	Backshell	M05	IP50	Unshielded	Plastic	150 °C	-50 °C	Detent Lock, Push-Pull	Polysulfone (PSU)	Free Hanging (In-Line)	Gray	G		7 A	Polysulfone (PSU)	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PAG.M0.8GL.CC52G	Male Pins, Plug	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Polyetheretherketone (PEEK)	Backshell	M08	IP50	Unshielded	Plastic	150 °C	-50 °C	Detent Lock, Push-Pull	Polysulfone (PSU)	Free Hanging (In-Line)	Gray	G	8	5 A	Polysulfone (PSU)	0.157 in	0.205 in	4 mm	5.2 mm			Crimp
LEMO PAG.M0.4GL.AC65Z	Male Pins, Plug	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Polyetheretherketone (PEEK)	Backshell	M04	IP50	Unshielded	Plastic	150 °C	-50 °C	Detent Lock, Push-Pull	Polysulfone (PSU)	Free Hanging (In-Line)	Gray	G	4	8 A	Polysulfone (PSU)					0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO PAG.M0.6NL.CC52G	Male Pins, Plug	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Polyetheretherketone (PEEK)	Backshell	M06	IP50	Unshielded	Plastic	150 °C	-50 °C	Detent Lock, Push-Pull	Polysulfone (PSU)	Free Hanging (In-Line)		G	6	6 A	Polysulfone (PSU)	0.157 in	0.205 in	4 mm	5.2 mm			Crimp
LEMO PAG.M0.7GL.CC65N	Male Pins, Plug	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Polyetheretherketone (PEEK)	Backshell		IP50	Unshielded	Plastic	150 °C	-50 °C	Detent Lock, Push-Pull	Polysulfone (PSU)	Free Hanging (In-Line)		G	7	5 A	Polysulfone (PSU)					0.209 in, 0.256 in	5.3 mm, 6.5 mm	Crimp
LEMO PAG.M0.4GL.AC52A	Male Pins, Plug	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Polyetheretherketone (PEEK)	Backshell	M04	IP50	Unshielded	Plastic	150 °C	-50 °C	Detent Lock, Push-Pull	Polysulfone (PSU)	Free Hanging (In-Line)	Blue, Gray	G	4	8 A	Polysulfone (PSU)	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PAG.M0.6TL.AC65Z	Male Pins, Plug	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Polyetheretherketone (PEEK)	Backshell	M06	IP50	Unshielded	Plastic	170 °C	-50 °C	Detent Lock, Push-Pull	Polyetherimide (PEI)	Free Hanging (In-Line)	Black	G	6	6 A	Polyetherimide (PEI)					0.209 in, 0.256 in	5.3 mm, 6.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.63
		10	$ 15.28
		25	$ 14.48
		50	$ 14.27
		100	$ 12.59
		250	$ 11.75
		500	$ 11.50

Description

General part information

PAG.M0 Series

4 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources
