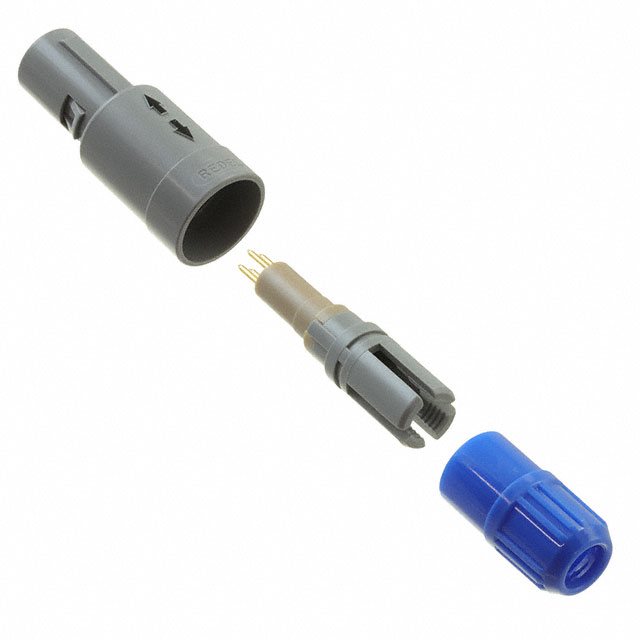

Specification	PAG.M0.4GL.AC52A

Applications	Industrial, Automotive, Testing Equipment & Measurement, Medical
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening (Max)	0.205 in
Cable Opening (Min)	0.157 in
Color	Blue, Gray
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Current Rating	8 A
Fastening Type	Push-Pull, Detent Lock
Features	Backshell
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-50 °C
Orientation	G
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	M04
Shielding	Unshielded
Termination	Solder Cup

PAG.M0 Series

Standard Circular Connector

...

Part	Number of Positions	Orientation	Insert Material	Contact Finish - Mating	Shell Size - Insert	Termination	Connector Type	Primary Material	Current Rating	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Feature	Shielding	Color	Shell Material	Mounting Type	Applications	Ingress Protection Description	Ingress Protection IP Rating
LEMO PKG.M0.8TL.NZ	8	G	PEEK Polyetheretherketone	Gold	M08	Solder	Female Sockets Receptacle	Plastic	5 A	Detent Lock Push-Pull	-50 °C	170 °C	Front and Rear Side Nut	Unshielded	Black	Polyetherimide (PEI)	Panel Mount Through Hole	Automotive Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50
LEMO PKG.M0.5SL.LA	5	G	PEEK Polyetheretherketone	Gold	M05	Solder Cup	Female Sockets Receptacle	Plastic	7 A	Detent Lock Push-Pull	-50 °C	170 °C	Front and Rear Side Nut	Unshielded	Blue Gray	Polyetherimide (PEI)	Panel Mount	Automotive Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50
LEMO PKG.M0.9TL.LZ	9	G	PEEK Polyetheretherketone	Gold	M09	Solder Cup	Female Sockets Receptacle	Plastic	3 A	Detent Lock Push-Pull	-50 °C	170 °C	Front and Rear Side Nut	Unshielded	Black	Polyetherimide (PEI)	Panel Mount	Automotive Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50
LEMO PKG.M0.4TL.LJ	4	G	PEEK Polyetheretherketone	Gold	M04	Solder Cup	Female Sockets Receptacle	Plastic	8 A	Detent Lock Push-Pull	-50 °C	170 °C	Front and Rear Side Nut	Unshielded	Black Yellow	Polyetherimide (PEI)	Panel Mount	Automotive Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50
LEMO PKG.M0.8SL.LG	8	G	PEEK Polyetheretherketone	Gold	M08	Solder Cup	Female Sockets Receptacle	Plastic	5 A	Detent Lock Push-Pull	-50 °C	170 °C	Front and Rear Side Nut	Unshielded	Gray	Polyetherimide (PEI)	Panel Mount	Automotive Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50
LEMO PKG.M0.6SL.LA	6	G	PEEK Polyetheretherketone	Gold	M06	Solder Cup	Female Sockets Receptacle	Plastic	6 A	Detent Lock Push-Pull	-50 °C	170 °C	Front and Rear Side Nut	Unshielded	Blue Gray	Polyetherimide (PEI)	Panel Mount	Automotive Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50
LEMO PKG.M0.4NL.VN	4	G	PEEK Polyetheretherketone	Gold	M04	Solder	Female Sockets Receptacle	Plastic	8 A	Detent Lock Push-Pull	-50 °C	150 °C	Front and Rear Side Nut	Unshielded	Black	Polysulfone (PSU)	Panel Mount Right Angle Through Hole	Automotive Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50
LEMO PKG.M0.9TL.LN	9	G	PEEK Polyetheretherketone	Gold	M09	Solder Cup	Female Sockets Receptacle	Plastic	3 A	Detent Lock Push-Pull	-50 °C	170 °C	Front and Rear Side Nut	Unshielded	Black	Polyetherimide (PEI)	Panel Mount	Automotive Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50
LEMO PKG.M0.4SL.MN	4	G	PEEK Polyetheretherketone	Gold	M04	Crimp	Female Sockets Receptacle	Plastic	8 A	Detent Lock Push-Pull	-50 °C	170 °C	Front and Rear Side Nut	Unshielded	Black Gray	Polyetherimide (PEI)	Panel Mount	Automotive Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50
LEMO PKG.M0.6SL.VA	6	G	PEEK Polyetheretherketone	Gold	M06	Solder	Female Sockets Receptacle	Plastic	6 A	Detent Lock Push-Pull	-50 °C	170 °C	Front and Rear Side Nut	Unshielded	Blue Gray	Polyetherimide (PEI)	Panel Mount Right Angle Through Hole	Automotive Industrial Medical Testing Equipment & Measurement	Dust Protected	IP50
