MS288-10F
ActiveMasach Tech Ltd.
RF SHIELD 0.764"X1.134" SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
MS288-10F
ActiveMasach Tech Ltd.
RF SHIELD 0.764"X1.134" SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS288-10F |
|---|---|
| Height - Overall [z] | 5 mm |
| Height - Overall [z] | 0.197 in |
| Length - Overall | 28.8 mm |
| Length - Overall | 1.134 in |
| Mounting Type | Solder |
| Type | Frame |
| Width - Overall [x] | 19.4 mm |
| Width - Overall [x] | 0.764 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.14 | |
| 10 | $ 1.33 | |||
| 64 | $ 0.95 | |||
| 128 | $ 0.85 | |||
| 256 | $ 0.77 | |||
| 448 | $ 0.71 | |||
| 960 | $ 0.64 | |||
| 2432 | $ 0.57 | |||
| 4928 | $ 0.54 | |||
Description
General part information
MS288 Series

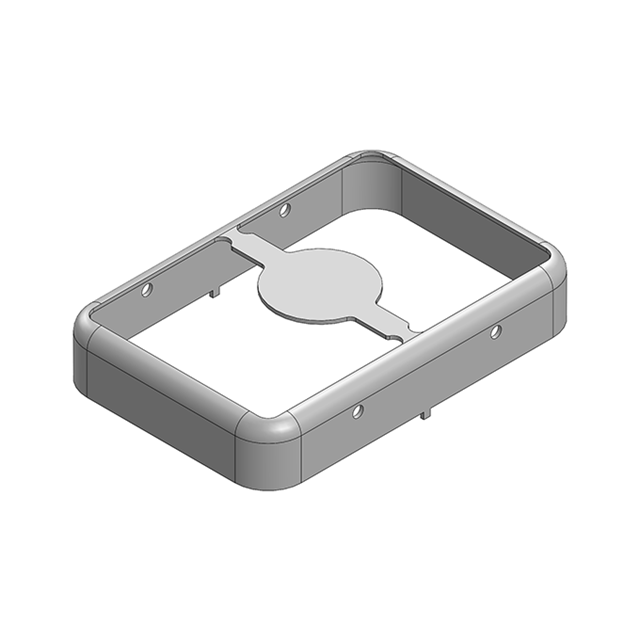

RF Shield Frame 0.764" (19.40mm) X 1.134" (28.80mm) Solder
Documents
Technical documentation and resources
