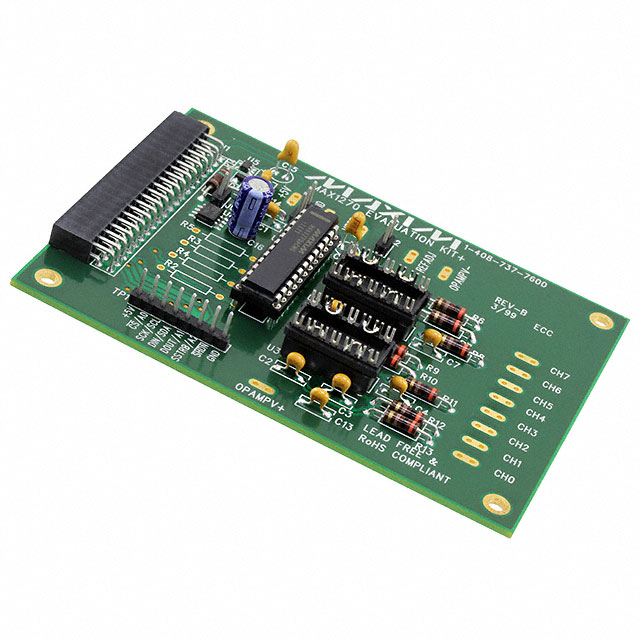

MAX1270EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVALUATION FOR MAX1270
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX1270EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVALUATION FOR MAX1270
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX1270EVKIT+ | MAX1270 Series |
|---|---|---|
| Architecture | - | SAR |
| Configuration | - | MUX-S/H-ADC |
| Data Interface | Serial | QSPI™, Serial, SPI™, MICROWIRE™, SPI |
| Input Range | 10 V | 10 V |
| Input Type | - | Single Ended |
| Mounting Type | - | Through Hole, Surface Mount |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 12 bits | 12 bits |
| Number of Channels | - | 8 |
| Number of Inputs | - | 8 |
| Operating Temperature | - | 70 - 85 °C |
| Operating Temperature | - | -40 - 0 °C |
| Package / Case | - | 0.3 in |
| Package / Case | - | 24-DIP, 28-SSOP |
| Package / Case | - | 7.62 mm |
| Package / Case | - | 0.209 in |
| Package / Case | - | 5.3 mm |
| Power (Typ) @ Conditions | 30 mW | 30 mW |
| Ratio - S/H:ADC | - | 1:1 |
| Reference Type | - | External, Internal |
| Resolution (Bits) | - | 12 b |
| Sampling Rate (Per Second) | 110k | 110k |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 24-PDIP, 28-SSOP |
| Type | - | Data Acquisition |
| Voltage - Supply | - | 4.75 V |
| Voltage - Supply | - | 5.25 V |
| Voltage - Supply, Analog | - | 5 V |
| Voltage - Supply, Digital | - | 5 V |
| Voltage Supply Source | - | Single Supply |
MAX1270 Series
IC DAS/ADC 12BIT 110K 24DIP
| Part | Resolution (Bits) | Supplier Device Package | Voltage Supply Source | Data Interface | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Sampling Rate (Per Second) | Package / Case | Package / Case | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] | Number of Channels | Package / Case [custom] | Package / Case [custom] | Type | Configuration | Input Type | Voltage - Supply, Digital | Ratio - S/H:ADC | Voltage - Supply, Analog | Number of Inputs | Architecture | Number of Bits | Number of A/D Converters | Reference Type | Power (Typ) @ Conditions | Supplied Contents | Input Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX1270ACNG+ | 12 b | 24-PDIP | Single Supply | MICROWIRE™, QSPI™, Serial, SPI™ | Through Hole | 70 °C | 0 °C | 110k | 0.3 in | 24-DIP | 7.62 mm | 4.75 V | 5.25 V | 8 | ||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX1270BCNG+ | 12 b | 24-PDIP | Single Supply | MICROWIRE™, QSPI™, Serial, SPI™ | Through Hole | 70 °C | 0 °C | 110k | 0.3 in | 24-DIP | 7.62 mm | 4.75 V | 5.25 V | 8 | ||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX1270BEAI | 12 b | 28-SSOP | Single Supply | Serial | Surface Mount | 85 °C | -40 °C | 110k | 28-SSOP | 8 | 0.209 in | 5.3 mm | Data Acquisition | |||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX1270ACNG | 24-PDIP | SPI | Through Hole | 70 °C | 0 °C | 110k | 0.3 in | 24-DIP | 7.62 mm | MUX-S/H-ADC | Single Ended | 5 V | 1:1 | 5 V | 8 | SAR | 12 bits | 1 | External, Internal | |||||||||||
Analog Devices Inc./Maxim Integrated MAX1270BCAI+T | 12 b | 28-SSOP | Single Supply | MICROWIRE™, QSPI™, Serial, SPI™ | Surface Mount | 70 °C | 0 °C | 110k | 28-SSOP | 4.75 V | 5.25 V | 8 | 0.209 in | 5.3 mm | ||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX1270ACAI+T | 12 b | 28-SSOP | Single Supply | MICROWIRE™, QSPI™, Serial, SPI™ | Surface Mount | 70 °C | 0 °C | 110k | 28-SSOP | 4.75 V | 5.25 V | 8 | 0.209 in | 5.3 mm | ||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX1270ACAI | 12 b | 28-SSOP | Single Supply | Serial | Surface Mount | 70 °C | 0 °C | 110k | 28-SSOP | 8 | 0.209 in | 5.3 mm | Data Acquisition | |||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX1270AENG+ | 12 b | 24-PDIP | Single Supply | MICROWIRE™, QSPI™, Serial, SPI™ | Through Hole | 85 °C | -40 °C | 110k | 0.3 in | 24-DIP | 7.62 mm | 4.75 V | 5.25 V | 8 | ||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX1270ACAI+ | 12 b | 28-SSOP | Single Supply | MICROWIRE™, QSPI™, Serial, SPI™ | Surface Mount | 70 °C | 0 °C | 110k | 28-SSOP | 4.75 V | 5.25 V | 8 | 0.209 in | 5.3 mm | ||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX1270BCAI | 12 b | 28-SSOP | Single Supply | Serial | Surface Mount | 70 °C | 0 °C | 110k | 28-SSOP | 8 | 0.209 in | 5.3 mm | Data Acquisition |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 137.62 | |
Description
General part information
MAX1270 Series
MAX1270, MAX1271, MAX127, MAX128 - 12 Bit 110k Samples per Second Analog to Digital Converter (ADC) Evaluation Board
