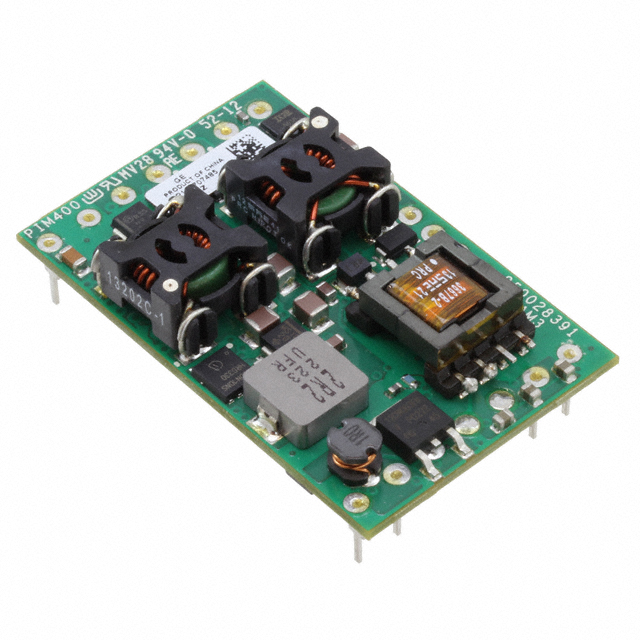

PIM400Z
ActiveOmniOn Power™
DC DC CONVERTER -48V 400W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PIM400Z
ActiveOmniOn Power™
DC DC CONVERTER -48V 400W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PIM400Z |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 10 A |
| Efficiency | 98.5 % |
| Features | OCP, UVLO, OTP, OVP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 15-DIP Module, 1/4 Brick |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [z] | 13.7 mm |
| Size / Dimension [z] | 0.54 in |
| Supplier Device Package | Quarter Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | -75 V |
| Voltage - Input (Min) [Min] | -36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | -48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 62.81 | |
Description
General part information
PIM400Z
Isolated Module DC DC Converter 2 Output -48V 10A -36V - -75V Input
