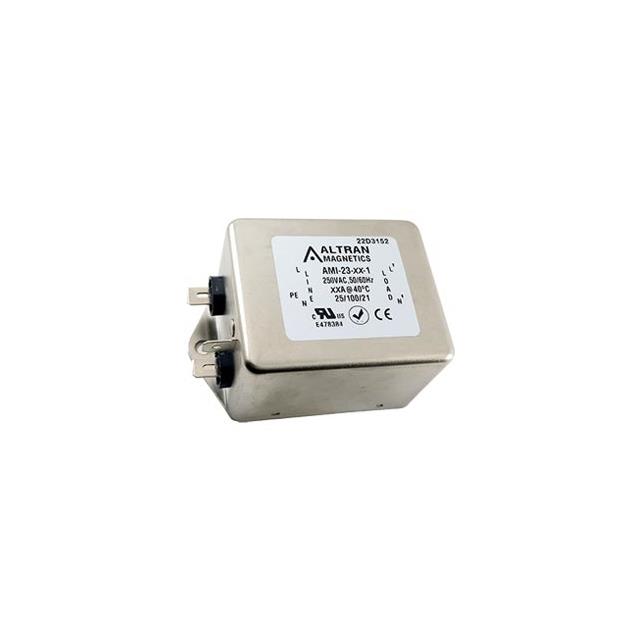

AMI-23B-8-1

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 8A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMI-23B-8-1

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 8A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.67
		10	$ 16.05
		25	$ 14.79
		50	$ 13.91

Description

General part information

AMI-23B Series

Single Phase EMC/EMI Line Filter 8 A 250V DC ~ 400Hz Single Stage Quick Connect

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AMI-23B-8-1	AMI-23B Series

Applications	Medical	Medical
Approval Agency	CE, cURus	CE, cURus
Configuration	Single Stage	Single Stage
Current	8 A	1 - 8 A
Filter Type	Single Phase	Single Phase
Frequency - Operating	400 Hz	400 Hz
Inductance	8 mH	8 - 20 mH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Termination Style	Quick Connect	Quick Connect
Voltage - Rated AC	250 V	250 V

AMI-23B Series

LINE FILTER 250VAC 8A CHASSIS

Part	Frequency - Operating	Termination Style	Inductance	Current	Operating Temperature [custom]	Approval Agency	Mounting Type	Voltage - Rated AC	Filter Type	Configuration	Applications
Altran Magnetics, LLC AMI-23B-8-1	400 Hz	Quick Connect	8 mH	8 A	-25 °C, 100 °C	CE, cURus	Chassis Mount	250 V	Single Phase	Single Stage	Medical
Altran Magnetics, LLC AMI-23B-3-3	400 Hz	Quick Connect	14 mH	3 A	-25 °C, 100 °C	CE, cURus	Chassis Mount	250 V	Single Phase	Single Stage	Medical
Altran Magnetics, LLC AMI-23B-6-3	400 Hz	Quick Connect	8 mH	6 A	-25 °C, 100 °C	CE, cURus	Chassis Mount	250 V	Single Phase	Single Stage	Medical
Altran Magnetics, LLC AMI-23B-6-1	400 Hz	Quick Connect	8 mH	6 A	-25 °C, 100 °C	CE, cURus	Chassis Mount	250 V	Single Phase	Single Stage	Medical
Altran Magnetics, LLC AMI-23B-1-1	400 Hz	Quick Connect	20 mH	1 A	-25 °C, 100 °C	CE, cURus	Chassis Mount	250 V	Single Phase	Single Stage	Medical
Altran Magnetics, LLC AMI-23B-8-3	400 Hz	Quick Connect	8 mH	8 A	-25 °C, 100 °C	CE, cURus	Chassis Mount	250 V	Single Phase	Single Stage	Medical
Altran Magnetics, LLC AMI-23B-1-3	400 Hz	Quick Connect	20 mH	1 A	-25 °C, 100 °C	CE, cURus	Chassis Mount	250 V	Single Phase	Single Stage	Medical
Altran Magnetics, LLC AMI-23B-4-3	400 Hz	Quick Connect	14 mH	4 A	-25 °C, 100 °C	CE, cURus	Chassis Mount	250 V	Single Phase	Single Stage	Medical
Altran Magnetics, LLC AMI-23B-4-1	400 Hz	Quick Connect	14 mH	4 A	-25 °C, 100 °C	CE, cURus	Chassis Mount	250 V	Single Phase	Single Stage	Medical
Altran Magnetics, LLC AMI-23B-3-1	400 Hz	Quick Connect	14 mH	3 A	-25 °C, 100 °C	CE, cURus	Chassis Mount	250 V	Single Phase	Single Stage	Medical
