ECH350R-06P-BK
ActiveDinkle Corporation, USA
TERM BLOCK HDR 6POS 3.50MM
ECH350R-06P-BK
ActiveDinkle Corporation, USA
TERM BLOCK HDR 6POS 3.50MM
Description
General part information
ECH350R-06P-BK

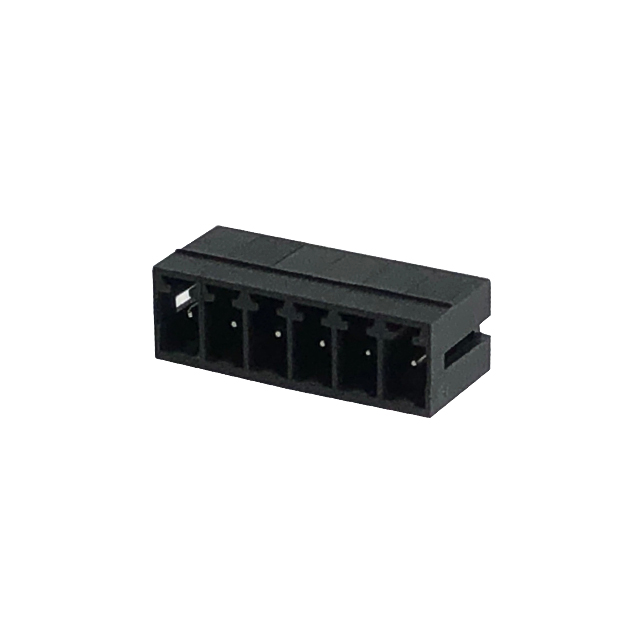

6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | ECH350R-06P-BK |
|---|---|
| Color | Black |
| Current - IEC | 14 A |
| Current - UL | 8 A |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 6 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Positions Per Level | 6 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 320 A, 320 V |
| Voltage - UL | 300 A, 300 V |
