796272-1

Active

TE Connectivity AMP Connectors

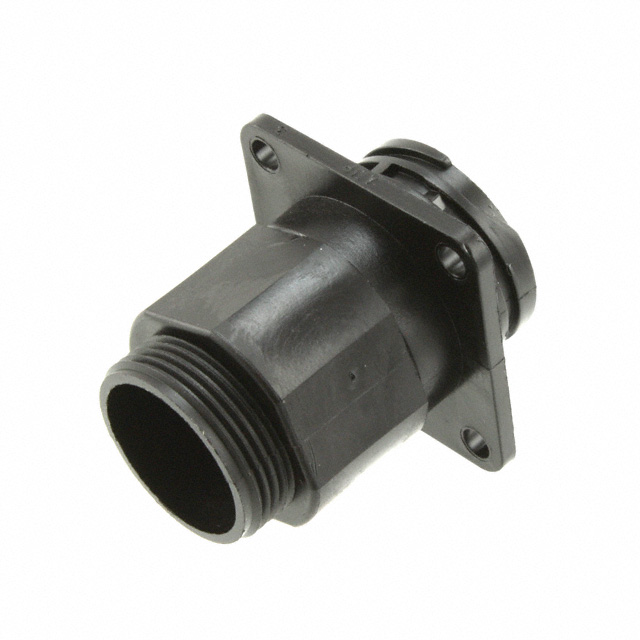

CONN RCPT HSG FMALE 14POS PNL MT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG FMALE 14POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	796272-1

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Features	Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert	17-14
Shielding	Unshielded
Type	For Female Sockets

CONN RCPT HSG FMALE 14POS PNL MT

Part	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Type	Note	Mounting Feature	Shell Size - Insert	Connector Type	Material Flammability Rating	Number of Positions	Contact Size	Shielding	Orientation	Housing Color	Insert Material	Ingress Protection	Type
TE Connectivity AMP Connectors 796272-1	Circular	105 ░C	-55 °C	Backshell	Crimp	Contacts Not Included	Flange	17-14	Receptacle Housing	UL94 V-0	14	16	Unshielded	Keyed	Black	Thermoplastic	IP67 - Dust Tight, Waterproof	For Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Circular Connector Receptacle Housing Panel Mount Backshell
