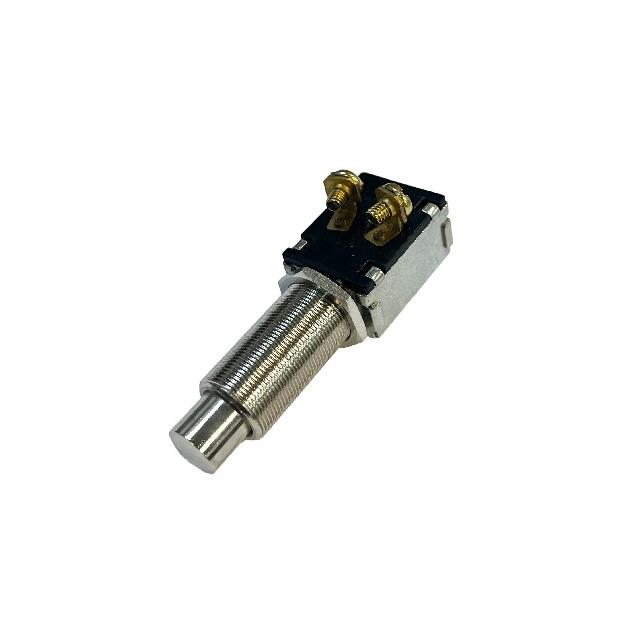

PA1-1B-DC-3

Active

Switch Components

HEAVY DUTY-NO LARGE ACTUATOR

Search across all available documentation for this part.

Active

Switch Components

HEAVY DUTY-NO LARGE ACTUATOR

Technical Specifications

Parameters and characteristics for this part

Specification	PA1-1B-DC-3

Actuator Marking	No Marking
Actuator Type	Rubber Cap, Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Electrical Life	6000 Cycles
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Rear
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - DC	12 V

HEAVY DUTY-NO LARGE ACTUATOR

Part	Current Rating (Amps)	Switch Function	Voltage Rating - DC	Type	Termination Style	Actuator Type	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Mechanical Life	Mounting Type	Circuit	Actuator Marking	Electrical Life
Switch Components PA1-1B-DC-3	15 A	Off-Mom	12 V	Standard	Screw Terminal	Button, Round, Rubber Cap	16 mm	Black	10000 Steps	Panel Mount, Rear	SPST-NO	No Marking	6000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.15

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Rear
