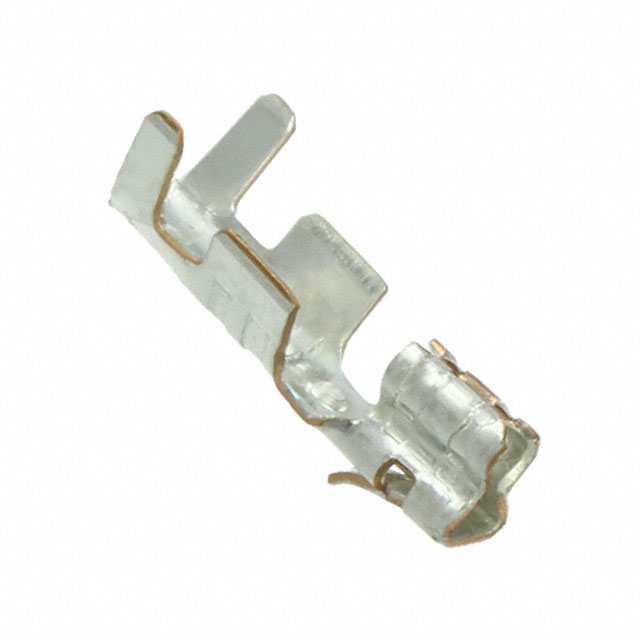

0008701047

Unknown

Molex

CONN SOCKET 22-28AWG CRIMP TIN

Search across all available documentation for this part.

Unknown

Molex

CONN SOCKET 22-28AWG CRIMP TIN

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN SOCKET 22-28AWG CRIMP TIN

Part	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket
Molex 0008701028	Crimp	35.4 µin	0.9 µm	Tin	28 AWG	22 AWG	Socket
Molex 0008701047	Crimp			Tin	28 AWG	22 AWG	Socket
Molex 0008700103	Crimp	35.4 µin	0.9 µm	Tin	28 AWG	22 AWG	Pin
Molex 0008700012	Crimp	35.4 µin	0.9 µm	Tin	24 AWG	17.5 AWG	Non-Gendered
Molex 0008700043	Crimp			Tin	24 AWG	17.5 AWG	Pin
Molex 0008700048	Crimp	35.4 µin	0.9 µm	Tin	28 AWG	22 AWG	Non-Gendered

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Socket Contact Tin 22-28 AWG Crimp

Technical documentation and resources
