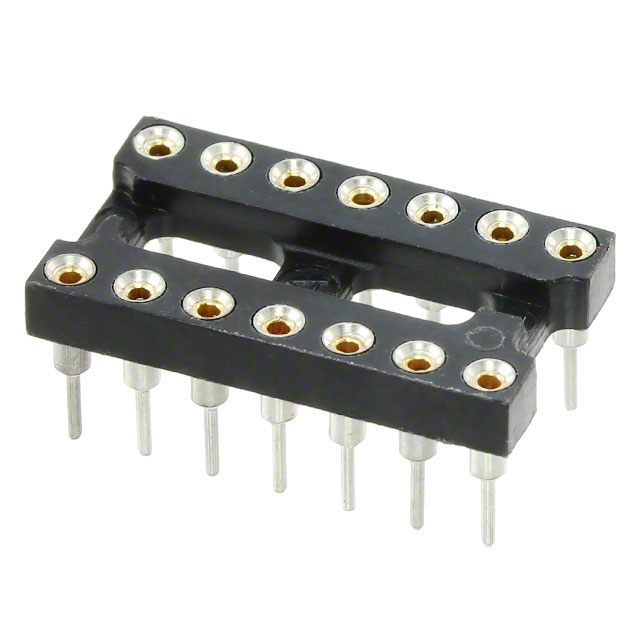

814-AG11D-ESL-LF

Obsolete

TE Connectivity AMP Connectors

CONN IC DIP SOCKET 14POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN IC DIP SOCKET 14POS GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	814-AG11D-ESL-LF	814 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post	Copper	Copper
Contact Material - Post	-	Copper Alloy
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	-	3 A
Features	Open Frame	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	14	14
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	3.18 mm	3.18 mm
Termination Post Length	0.125 in	0.125 in
Type	0.3 "	0.3 "
Type	7.62 mm	7.62 mm
Type	DIP	DIP

CONN IC DIP SOCKET 14POS GOLD

Part	Contact Material - Post [custom]	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material - Mating	Type	Type	Type	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Positions or Pins (Grid)	Contact Finish - Mating	Termination	Features	Termination Post Length	Termination Post Length	Housing Material	Contact Resistance	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Material - Post	Contact Finish Thickness - Mating	Contact Finish - Post
TE Connectivity AMP Connectors 814-AG10D-ES	Copper Alloy	3 A	UL94 V-0	105 ░C	-55 °C	Beryllium Copper	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	Through Hole	14	Gold	Solder	Open Frame	3.18 mm	0.125 in	Polyester	10 mOhm	2.54 mm	0.1 in
TE Connectivity AMP Connectors 814-AG11D-ESL-LF			UL94 V-0	105 ░C	-55 °C	Beryllium Copper	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	Through Hole	14	Gold	Solder	Open Frame	3.18 mm	0.125 in	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	10 mOhm	2.54 mm	0.1 in	Flash	Copper	Flash	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
