2-130532-1

Active

TE Connectivity AMP Connectors

CONN SPADE TERM 14-16AWG #8 BLU

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SPADE TERM 14-16AWG #8 BLU

Technical Specifications

Parameters and characteristics for this part

Specification	2-130532-1

Color	Blue
Contact Finish	Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter [Max] [diameter]	0.17 ", 4.32 mm
Insulation Diameter [Min] [diameter]	2.92 mm, 0.115 in
Length - Overall [x]	20.65 mm
Length - Overall [x]	0.813 in
Length - Ring Center to Termination	7.11 mm
Length - Ring Center to Termination	0.28 in
Length - Termination	0.404 "
Length - Termination	10.26 mm
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	0.171 in
Tongue Inside Opening [x]	4.34 mm
Width - Outer Edges [y]	0.25 "
Width - Outer Edges [y]	6.35 mm

CONN SPADE TERM 14-16AWG #8 BLU

Part	Material - Insulation	Stud/Tab Size	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Length - Ring Center to Termination	Length - Ring Center to Termination	Terminal Type	Length - Overall [x]	Length - Overall [x]	Mounting Type	Termination	Insulation	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Termination	Length - Termination	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Material	Contact Finish	Color
TE Connectivity AMP Connectors 2-130532-1	Nylon, Polyamide (PA)	8 Stud	0.115 in, 2.92 mm	0.17 ", 4.32 mm	7.11 mm	0.28 in	Standard	20.65 mm	0.813 in	Free Hanging (In-Line)	Crimp	Insulated	0.171 in	4.34 mm	0.404 "	10.26 mm	0.25 "	6.35 mm	Copper	Tin	Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	12000	$ 0.67

General part information

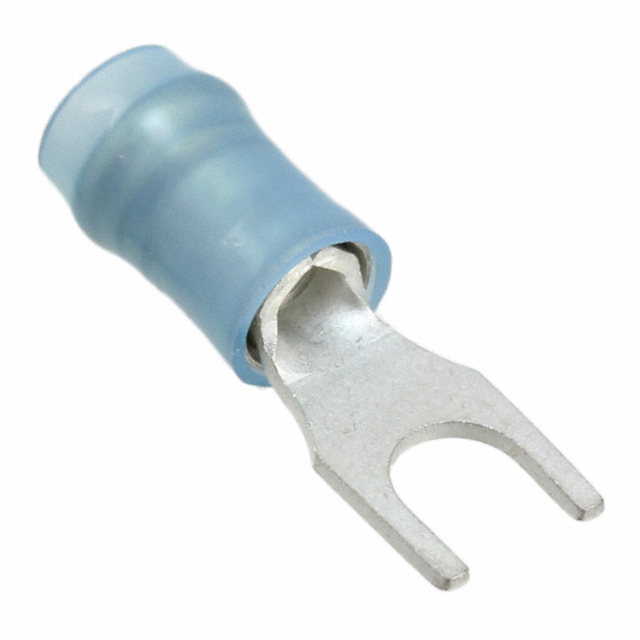

Blue 8 Stud Spade Terminal Connector Crimp 14-16 AWG
