EPS-300 1/2" BL48"BX
Active3M

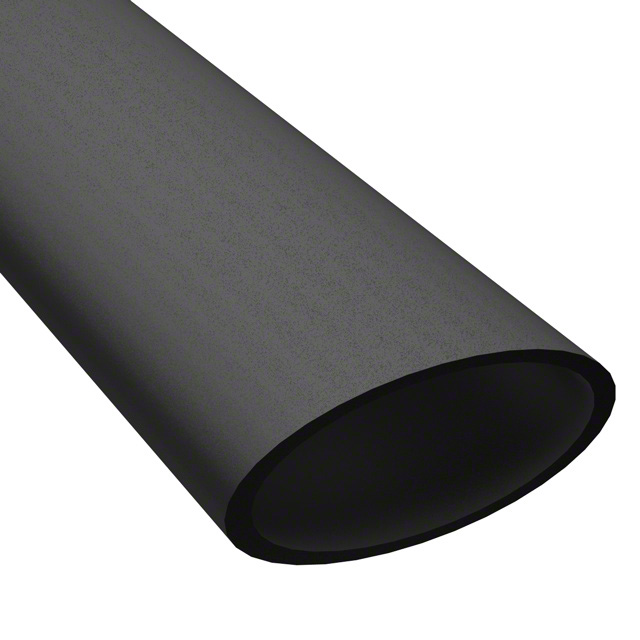

HEATSHRINK EPS300 1/2"X 4' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
EPS-300 1/2" BL48"BX
Active3M
HEATSHRINK EPS300 1/2"X 4' BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EPS-300 1/2" BL48"BX | EPS-300 Series |
|---|---|---|
| Color | Black | Black, Red, Clear |
| Features | Corrosion Resistant, Water Resistant, Self Extinguishing, Adhesive Lined, Fluid Resistant, Flame Retardant | Header Label, Adhesive Lined, Self Extinguishing, Corrosion Resistant, Fluid Resistant, Flame Retardant, Water Resistant |
| Inner Diameter - Recovered | - | 0.51 in |
| Inner Diameter - Recovered | - | 12.95 mm |
| Inner Diameter - Recovered [diameter] | 0.16 in | 0.04 - 0.32 in |
| Inner Diameter - Recovered [diameter] | 4.06 mm | 1.02 - 8.13 mm |
| Inner Diameter - Supplied [diameter] | 12.7 mm | 3.18 - 38.1 mm |
| Inner Diameter - Supplied [diameter] | 0.5 in | 0.125 - 1.5 " |
| Length | 152.4 mm, 50.8 mm, 19.05 mm, 38.1 mm | 19.05 - 152.4 mm |
| Length | 6 ", 2 ", 0.75 ", 1.5 " | 0.75 - 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | 0.167 ', 0.062 ', 0.125 ' | 0.062 - 0.25 ' |
| Length | - | 4 " |
| Length [x] | 1.22 m | 1.22 - 609.6 m |
| Length [x] | 4 ft | 0.333 - 4 ft |
| Material | Polyolefin (PO), Irradiated | Polyolefin (PO), Irradiated |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Recovered Wall Thickness | 1.78 mm | 1.02 - 2.54 mm |
| Recovered Wall Thickness | 0.07 " | 0.04 - 0.1 in |
| Shelf Life | 120 Months | 120 Months |
| Shelf Life Start | Date of Manufacture | Date of Manufacture |
| Shrink Temperature | 121 °C | 121 °C |
| Shrinkage Ratio [Max] | 3 | 3 |
| Shrinkage Ratio [Min] | 1 | 1 |
| Storage/Refrigeration Temperature [Max] | 80 °F, 27 °C | 27 - 80 °F |
| Storage/Refrigeration Temperature [Min] | 10 °C | 10 °C |
| Type | Tubing, Flexible | Tubing, Flexible |
EPS-300 Series
HEATSHRINK TUBING 1/8-48"
| Part | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Type | Material | Color | Shrinkage Ratio [Min] | Shrinkage Ratio [Max] | Shelf Life | Features | Shelf Life Start | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered [diameter] | Recovered Wall Thickness | Recovered Wall Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Shrink Temperature | Length [x] | Length [x] | Length | Length | Length | Length | Length [x] | Inner Diameter - Recovered | Inner Diameter - Recovered |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.18 mm | 0.125 " | Tubing, Flexible | Polyolefin (PO), Irradiated | Black | 1 | 3 | 120 Months | Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Header Label, Self Extinguishing, Water Resistant | Date of Manufacture | 27 °C, 80 °F | 10 °C | 1.02 mm | 0.04 in | 1.02 mm | 0.04 in | -55 °C | 110 °C | 121 °C | 1.22 m | 4 ft | ||||||||
12.7 mm | 0.5 in | Tubing, Flexible | Polyolefin (PO), Irradiated | Black | 1 | 3 | 120 Months | Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Self Extinguishing, Water Resistant | Date of Manufacture | 27 °C, 80 °F | 10 °C | 4.06 mm | 0.16 in | 1.78 mm | 0.07 " | -55 °C | 110 °C | 121 °C | 1.22 m | 4 ft | ||||||||
6.35 mm | 0.25 in | Tubing, Flexible | Polyolefin (PO), Irradiated | Black | 1 | 3 | 120 Months | Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Self Extinguishing, Water Resistant | Date of Manufacture | 27 °C, 80 °F | 10 °C | 2.03 mm | 0.08 in | 1.02 mm | 0.04 in | -55 °C | 110 °C | 121 °C | 1.22 m | 4 ft | ||||||||
12.7 mm | 0.5 in | Tubing, Flexible | Polyolefin (PO), Irradiated | Black | 1 | 3 | 120 Months | Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Self Extinguishing, Water Resistant | Date of Manufacture | 27 °C, 80 °F | 10 °C | 4.06 mm | 0.16 in | 1.78 mm | 0.07 " | -55 °C | 110 °C | 121 °C | 1.22 m | 4 ft | 19.05 mm, 38.1 mm, 50.8 mm, 152.4 mm | 0.75 ", 1.5 ", 2 ", 6 " | 0.5 ' | 0.062 ', 0.125 ', 0.167 ' | ||||
25.4 mm | 1 in | Tubing, Flexible | Polyolefin (PO), Irradiated | Black | 1 | 3 | 120 Months | Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Header Label, Self Extinguishing, Water Resistant | Date of Manufacture | 27 °C, 80 °F | 10 °C | 8.13 mm | 0.32 " | 2.54 mm | 0.1 in | -55 °C | 110 °C | 121 °C | 1.22 m | 4 ft | ||||||||
4.75 mm | 0.187 in | Tubing, Flexible | Polyolefin (PO), Irradiated | Black | 1 | 3 | 120 Months | Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Self Extinguishing, Water Resistant | Date of Manufacture | 27 °C, 80 °F | 10 °C | 1.57 mm | 0.062 in | 1.02 mm | 0.04 in | -55 °C | 110 °C | 121 °C | 19.05 mm, 25.4 mm, 38.1 mm, 50.8 mm, 76.2 mm | 0.75 ", 1 in, 1.5 ", 2 ", 3 " | 0.062 ', 0.083 ft, 0.125 ', 0.167 ', 0.25 ft | |||||||
Tubing, Flexible | Polyolefin (PO), Irradiated | Black | 1 | 3 | 120 Months | Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Self Extinguishing, Water Resistant | Date of Manufacture | 27 °C, 80 °F | 10 °C | 6.35 mm | 0.25 in | 2.16 mm | 0.085 in | -55 °C | 110 °C | 121 °C | 152.4 mm | 6 " | 0.5 ' | |||||||||
25.4 mm | 1 in | Tubing, Flexible | Polyolefin (PO), Irradiated | Black | 1 | 3 | 120 Months | Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Self Extinguishing, Water Resistant | Date of Manufacture | 27 °C, 80 °F | 10 °C | 8.13 mm | 0.32 " | 2.54 mm | 0.1 in | -55 °C | 110 °C | 121 °C | 1.22 m | 4 ft | ||||||||
25.4 mm | 1 in | Tubing, Flexible | Polyolefin (PO), Irradiated | Black | 1 | 3 | 120 Months | Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Self Extinguishing, Water Resistant | Date of Manufacture | 27 °C, 80 °F | 10 °C | 8.13 mm | 0.32 " | 2.54 mm | 0.1 in | -55 °C | 110 °C | 121 °C | 1.22 m | 4 ft | ||||||||
25.4 mm | 1 in | Tubing, Flexible | Polyolefin (PO), Irradiated | Black | 1 | 3 | 120 Months | Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Header Label, Self Extinguishing, Water Resistant | Date of Manufacture | 27 °C, 80 °F | 10 °C | 8.13 mm | 0.32 " | 2.54 mm | 0.1 in | -55 °C | 110 °C | 121 °C | 1.22 m | 4 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.01 | |
| 2 | $ 23.93 | |||
| 3 | $ 22.78 | |||
| 5 | $ 21.42 | |||
| 7 | $ 20.56 | |||
| 10 | $ 19.70 | |||
| 25 | $ 17.63 | |||
| 50 | $ 16.22 | |||
| 50 | $ 0.51 | |||
| 50 | $ 0.65 | |||
| 50 | $ 0.25 | |||
| 50 | $ 0.20 | |||
| 100 | $ 0.23 | |||
| 100 | $ 0.19 | |||
| 100 | $ 0.47 | |||
| 100 | $ 0.60 | |||
| 100 | $ 15.54 | |||
| 150 | $ 0.44 | |||
| 150 | $ 0.18 | |||
| 150 | $ 0.57 | |||
| 250 | $ 0.42 | |||
| 250 | $ 0.20 | |||
| 250 | $ 0.54 | |||
| 250 | $ 0.17 | |||
| 350 | $ 0.16 | |||
| 350 | $ 0.40 | |||
| 350 | $ 0.52 | |||
| 500 | $ 0.38 | |||
| 500 | $ 0.15 | |||
| 500 | $ 0.19 | |||
| 500 | $ 0.49 | |||
| 1250 | $ 0.19 | |||
| 1250 | $ 0.35 | |||
| 1250 | $ 0.46 | |||
| 1250 | $ 0.14 | |||
| 2500 | $ 0.13 | |||
| 5000 | $ 0.13 | |||
| Spool | 50 | $ 1.74 | ||
| 100 | $ 1.60 | |||
| 150 | $ 1.52 | |||
| 250 | $ 1.43 | |||
| 350 | $ 1.38 | |||
| 500 | $ 1.34 | |||
Description
General part information
EPS-300 Series
Heat Shrink Tubing, Flexible 0.500" (12.70mm) 3 to 1 Black 4.00' (1.22m)
