0003091040

Obsolete

Molex

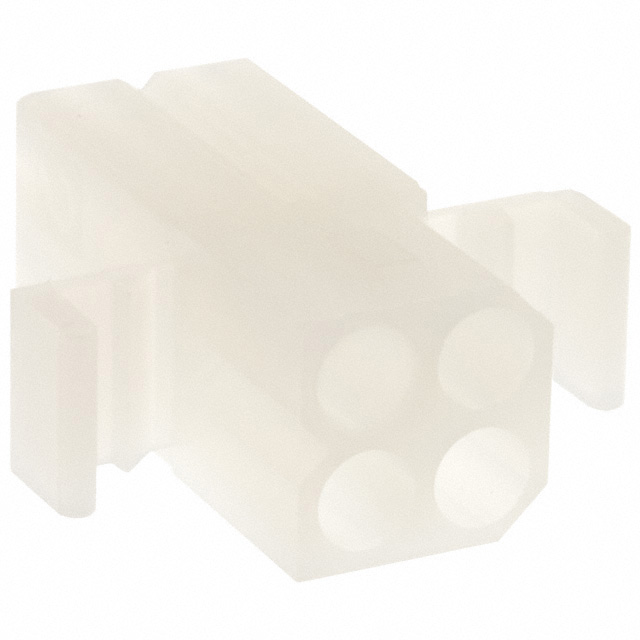

CONN RCPT HSG 4POS 5.03MM

Deep-Dive with AI

Search across all available documentation for this part.

0003091040

Obsolete

Molex

CONN RCPT HSG 4POS 5.03MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

000309 Series

4 Rectangular Connectors - Housings Receptacle Natural 0.198" (5.03mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0003091040	000309 Series

Color	Natural	Natural, Black
Connector Type	Receptacle	Plug, Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Male or Female	Male or Female, Female Socket
Fastening Type	Locking Ramp	Detent Lock, Locking Ramp, Latch Lock, Latch Lock/Eject Hooks, Latch Holder
Insulation Material	-	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount, Snap-In	Free Hanging (In-Line), Panel Mount, Snap-In
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	1 - 15
Number of Rows	2	1 - 3
Operating Temperature	-	-55 - -40 °C
Operating Temperature	-	105 ░C
Pitch [x]	0.198 in	0.198 - 0.248 in
Pitch [x]	5.03 mm	5.03 - 6.3 mm
Row Spacing	0.198 in	0.198 in
Row Spacing	5.03 mm	5.03 mm

000309 Series

CONN PLUG HSG 2POS 6.30MM

Part	Mounting Type	Pitch [x]	Pitch [x]	Note	Connector Type	Color	Contact Termination	Number of Rows	Insulation Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions	Row Spacing	Row Spacing
Molex 0003092022	Free Hanging (In-Line)	6.3 mm	0.248 in	Contacts Not Included	Plug	Natural	Crimp	1	Polyamide (PA66), Nylon 6/6	Male or Female	-40 °C	105 ░C	Detent Lock	2
Molex 0003092091	Panel Mount, Snap-In	5.03 mm	0.198 in	Contacts Not Included	Plug	Natural	Crimp	3		Male or Female			Detent Lock	9	0.198 in	5.03 mm
Molex 0003091121	Panel Mount, Snap-In	5.03 mm	0.198 in	Contacts Not Included	Receptacle	Natural	Crimp	3	Polyamide (PA66), Nylon 6/6	Male or Female	-40 °C	105 ░C		12	0.198 in	5.03 mm
Molex 0003091049	Free Hanging (In-Line)	5.03 mm	0.198 in	Contacts Not Included	Receptacle	Natural	Crimp	2	Polyamide (PA66), Nylon 6/6	Male or Female	-40 °C	105 ░C	Locking Ramp	4	0.198 in	5.03 mm
Molex 0003091064	Free Hanging (In-Line)	5.03 mm	0.198 in	Contacts Not Included	Receptacle	Natural	Crimp	3	Polyamide (PA66), Nylon 6/6	Male or Female	-40 °C	105 ░C	Locking Ramp	6	0.198 in	5.03 mm
Molex 0003091163	Free Hanging (In-Line)	6.3 mm	0.248 in	Contacts Not Included	Receptacle	Natural	Crimp	1		Male or Female			Detent Lock	2
Molex 0003092014	Free Hanging (In-Line)			Contacts Not Included	Plug	Natural	Crimp	1		Male or Female				1
Molex 0003091126	Free Hanging (In-Line)	5.03 mm	0.198 in	Contacts Not Included	Receptacle	Natural	Crimp	3	Polyamide (PA66), Nylon 6/6	Male or Female	-40 °C	105 ░C	Locking Ramp	12	0.198 in	5.03 mm
Molex 0003092048	Free Hanging (In-Line)	6.3 mm	0.248 in	Contacts Not Included	Plug	Natural	Crimp	1		Male or Female			Latch Lock	4
Molex 0003092028	Free Hanging (In-Line)	6.3 mm	0.248 in	Contacts Not Included	Plug	Natural	Crimp	1		Male or Female			Latch Lock	2
