ERA.0E.650.CTL

Active

LEMO

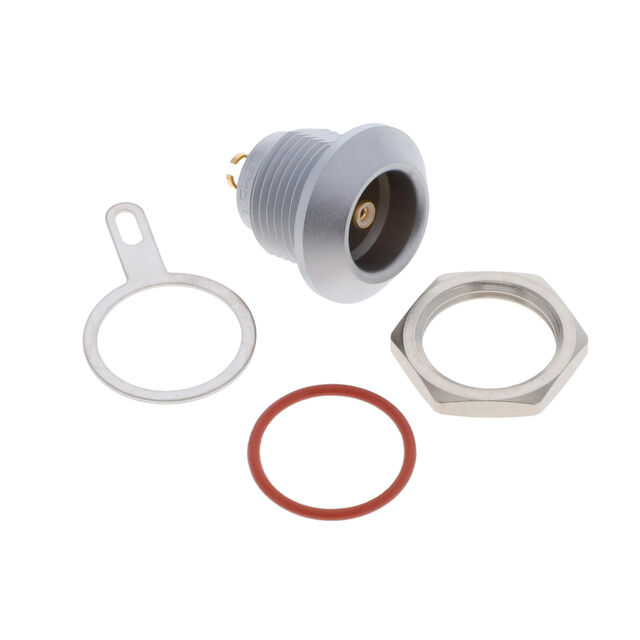

CONN TRIAX RCPT STR 50OHM SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN TRIAX RCPT STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERA.0E.650.CTL	ERA.0E Series

Body Finish	Chrome	Chrome
Body Material	Brass	Brass
Cable Group	178, RG-174	178, RG-174
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Color	-	Black, Silver
Connector Style	Triaxial	Triaxial
Connector Type	Receptacle, Female Socket	Female Sockets, Male Pins, Receptacle, Female Socket
Contact Finish - Mating	-	Gold
Contact Material	-	Bronze, Brass
Contact Termination	Solder Cup	Solder Cup
Current Rating (Amps)	-	7 A
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP68 - Dust Tight, Waterproof	IP66/IP68, IP68 - Dust Tight, Waterproof
Insert Material	-	Polyetheretherketone (PEEK)
Material Flammability Rating	-	UL94 V-0
Mating Cycles	5000	5000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	1	1
Number of Positions	-	4
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	-	Keyed
Primary Material	-	Metal
Shell Finish	-	Chrome
Shell Material	-	Brass
Shell Size - Insert	-	303 - 304
Shield Termination	Solder	Solder
Shielding	-	Shielded

CONN CIRC RCPT 4P GOLD SLDR CUP

Part	Insert Material	Ingress Protection	Shell Size - Insert	Orientation	Number of Positions	Mounting Feature	Contact Material	Shell Material	Primary Material	Contact Finish - Mating	Material Flammability Rating	Color	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Current Rating (Amps)	Shell Finish	Shield Termination	Body Finish	Cable Group	Number of Ports	Impedance	Contact Termination	Housing Color	Center Contact Material	Body Material	Dielectric Material	Mating Cycles	Center Contact Plating	Includes	Connector Style
LEMO ERA.0E.304.KLL	Polyetheretherketone (PEEK)	IP66/IP68	304	Keyed	4	Bulkhead - Rear Side Nut	Brass, Bronze	Brass	Metal	Gold	UL94 V-0	Black	Female Sockets, Male Pins, Receptacle	Push-Pull	-55 °C	200 °C	Shielded	7 A
LEMO ERA.0E.303.CLL	Polyetheretherketone (PEEK)	IP66/IP68	303	Keyed		Bulkhead - Rear Side Nut	Brass, Bronze	Brass	Metal	Gold	UL94 V-0	Silver	Female Sockets, Male Pins, Receptacle	Push-Pull	-55 °C	200 °C	Shielded	7 A	Chrome
LEMO ERA.0E.650.CTL		IP68 - Dust Tight, Waterproof				Bulkhead - Rear Side Nut							Female Socket, Receptacle	Push-Pull	-55 °C	200 °C				Solder	Chrome	178, RG-174	1	50 Ohms	Solder Cup	Silver	Beryllium Copper	Brass	Polytetrafluoroethylene (PTFE)	5000	Gold	1 Connector, 1 Lockwasher, 1 Nut	Triaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Triaxial Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
