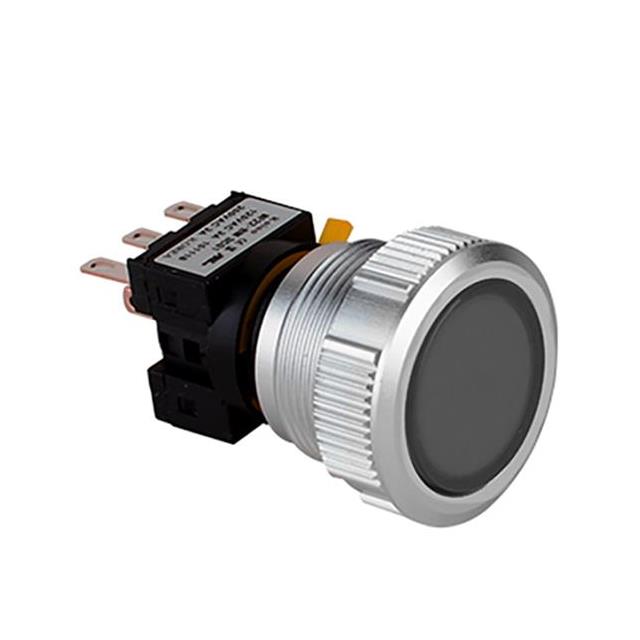

NF22-BA1CBK2
Pushbutton Switch 4PST-2NO/2NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | NF22-BA1CBK2 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round |
| Circuit | 4PST-2NO/2NC |
| Color | White |
| Color - Actuator/Cap | Black |
| Current Rating | 3 A |
| Electrical Life (Cycles) | 100000 Cycles |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 6 VDC |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 200000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-Off, Off-On |
| Termination Style | Quick Connect, Solder |
| Type | Standard, Illuminated |
