Y101132C201NQ

Active

LITTELFUSE

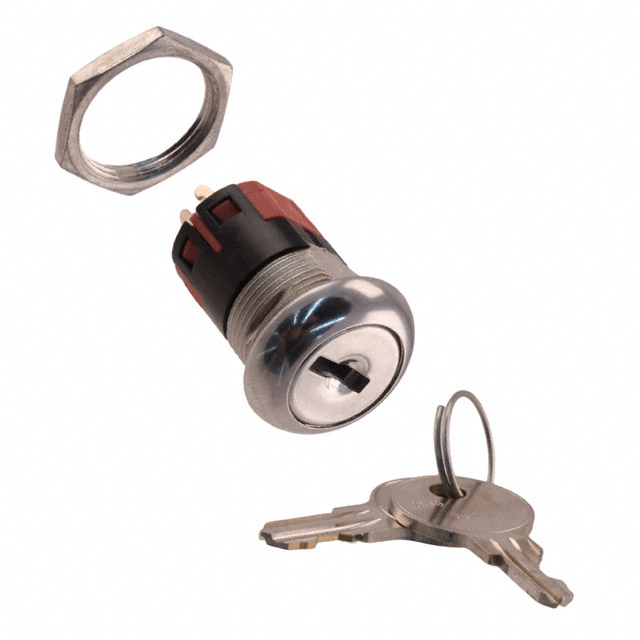

SWITCH KEYLOCK 2POS SPDT 4A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet switchlock +1

Y101132C201NQ

Active

LITTELFUSE

SWITCH KEYLOCK 2POS SPDT 4A 125V

Deep-Dive with AI

DocumentsDatasheet switchlock +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.89
		10	$ 13.71
		25	$ 12.93
		40	$ 12.54
		80	$ 11.99
		230	$ 11.20
		440	$ 11.06

Description

General part information

Y101132C Series

The Y series 4, 5 & 6 tumbler switchlock from C&K is an anti-static switch, exceeding 20 KV DC static resistance. Typically used in cash registers, point-of-sale terminals and computers, the high-performing Y series is also available in momentary models and with wire leads and/or harnesses.

Documents

Technical documentation and resources

Datasheet

switchlock

Complete Product Line

y

Datasheet

Specification	Y101132C201NQ	Y101132C Series

Actuator Type	Flat Key	Flat Key
Angle of Throw	90 °	90 °
Circuit	SPDT	SPDT
Contact Finish	Silver	Silver, Gold
Contact Material	Copper	Copper
Contact Timing	Not Specified	Not Specified
Current Rating (Amps)	4 A	0.4 - 4 A
Depth Behind Flange	28.83 mm	24.26 - 28.83 mm
Depth Behind Flange	-	23.14 mm
Electrical Life	10000 Cycles	10000 Cycles
Features	-	Epoxy Sealed Terminals
Key Removable Positions	1 only	1 only
Number of Positions	2	2
Panel Cutout Dimensions [diameter]	19.3 mm	19.3 mm
Switch Function	On-On	On-On
Termination Style	Solder Lug	PC Pin, Solder Lug, Wire Leads
Voltage Rating - AC	125 V	20 - 125 V
Voltage Rating - DC	28 V	20 - 28 V

Part	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Switch Function	Current Rating (Amps)	Contact Timing	Contact Finish	Actuator Type	Contact Material	Key Removable Positions	Angle of Throw	Depth Behind Flange	Electrical Life	Circuit	Termination Style	Number of Positions	Features	Depth Behind Flange [z]
LITTELFUSE Y101132C102RQ	125 V	19.3 mm	28 V	On-On	4 A	Not Specified	Silver	Flat Key	Copper	1 only	90 °	24.26 mm	10000 Cycles	SPDT	PC Pin	2
LITTELFUSE Y101132C203NQ	125 V	19.3 mm	28 V	On-On	4 A	Not Specified	Silver	Flat Key	Copper	1 only	90 °	28.83 mm	10000 Cycles	SPDT	Solder Lug	2
LITTELFUSE Y101132C201NQ	125 V	19.3 mm	28 V	On-On	4 A	Not Specified	Silver	Flat Key	Copper	1 only	90 °	28.83 mm	10000 Cycles	SPDT	Solder Lug	2
LITTELFUSE Y101132C203NQE	125 V	19.3 mm	28 V	On-On	4 A	Not Specified	Silver	Flat Key	Copper	1 only	90 °	28.83 mm	10000 Cycles	SPDT	Solder Lug	2	Epoxy Sealed Terminals
LITTELFUSE Y101132C402RQ	125 V	19.3 mm	28 V	On-On	4 A	Not Specified	Silver	Flat Key	Copper	1 only	90 °	24.26 mm	10000 Cycles	SPDT	PC Pin	2
LITTELFUSE Y101132C201NQE	125 V	19.3 mm	28 V	On-On	4 A	Not Specified	Silver	Flat Key	Copper	1 only	90 °	28.83 mm	10000 Cycles	SPDT	Solder Lug	2	Epoxy Sealed Terminals
LITTELFUSE Y101132CFWCNQ	125 V	19.3 mm	28 V	On-On	4 A	Not Specified	Silver	Flat Key	Copper	1 only	90 °		10000 Cycles	SPDT	Wire Leads	2		23.14 mm
LITTELFUSE Y101132C803NB	20 V	19.3 mm	20 V	On-On	0.4 VA	Not Specified	Gold	Flat Key	Copper	1 only	90 °	28.83 mm	10000 Cycles	SPDT	Solder Lug	2
LITTELFUSE Y101132C203DQ	125 V	19.3 mm	28 V	On-On	4 A	Not Specified	Silver	Flat Key	Copper	1 only	90 °	28.83 mm	10000 Cycles	SPDT	Solder Lug	2
LITTELFUSE Y101132C2WCNQE	125 V	19.3 mm	28 V	On-On	4 A	Not Specified	Silver	Flat Key	Copper	1 only	90 °		10000 Cycles	SPDT	Wire Leads	2	Epoxy Sealed Terminals	23.14 mm
