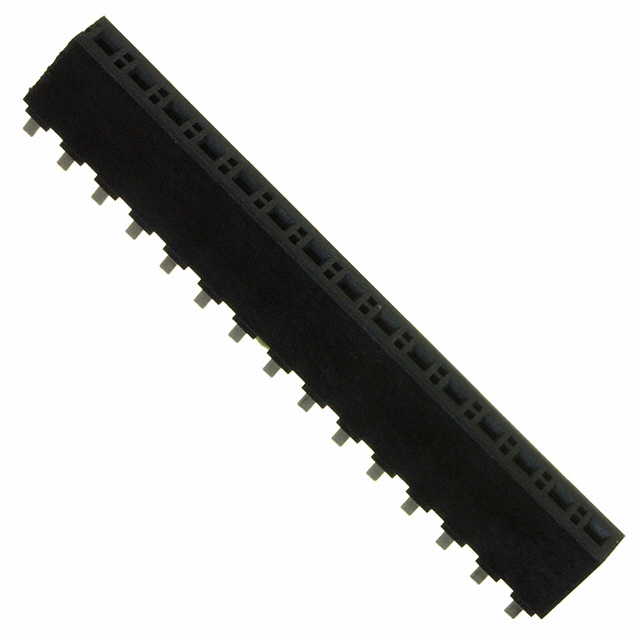

FHP-15-01-T-S

Active

Samtec Inc.

CONN RCPT 15POS 0.156 TIN PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 15POS 0.156 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish - Post	Fastening Type	Contact Type	Insulation Height	Insulation Height	Termination	Insulation Material	Number of Rows	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions Loaded	Number of Positions	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Mounting Type	Contact Shape	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Post	Contact Length - Post
Samtec Inc. FHP-15-02-T-S	Tin	Push-Pull	Female Socket	9.35 mm	0.368 in	Solder	Liquid Crystal Polymer (LCP)	1	0.156 in	3.96 mm	Receptacle	All	15	Black	105 ░C	-55 °C	Phosphor Bronze	Surface Mount	Square
Samtec Inc. FHP-15-01-T-S-TR	Tin	Push-Pull	Female Socket			Solder	Liquid Crystal Polymer (LCP)	1	0.156 in	3.96 mm	Receptacle	All	15	Black	105 ░C	-55 °C	Phosphor Bronze	Through Hole	Square	0.35 in	8.89 mm	0.102 in	2.6 mm
Samtec Inc. FHP-15-02-T-S-LC	Tin	Push-Pull	Female Socket	9.35 mm	0.368 in	Solder	Liquid Crystal Polymer (LCP)	1	0.156 in	3.96 mm	Receptacle	All	15	Black	105 ░C	-55 °C	Phosphor Bronze	Surface Mount	Square
Samtec Inc. FHP-15-01-T-S	Tin	Push-Pull	Female Socket			Solder	Liquid Crystal Polymer (LCP)	1	0.156 in	3.96 mm	Receptacle	All	15	Black	105 ░C	-55 °C	Phosphor Bronze	Through Hole	Square	0.35 in	8.89 mm	0.102 in	2.6 mm
