General part information

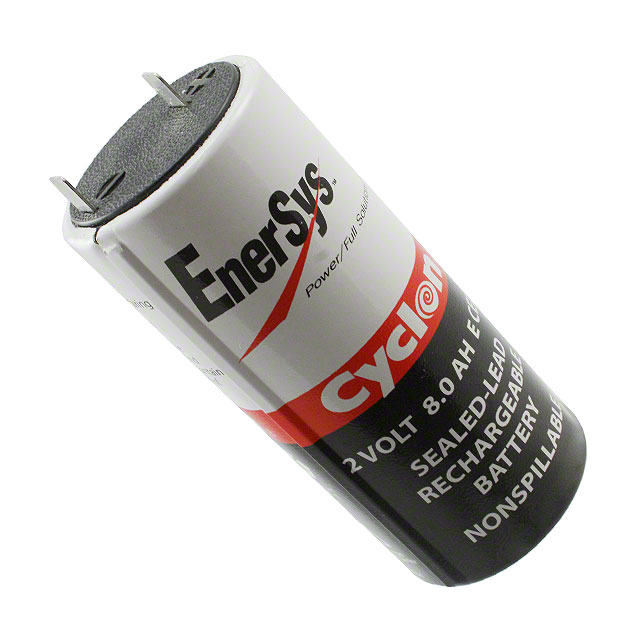

Sealed Lead Acid Battery
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 0850-0004 |
|---|---|
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 8 Ah |
| Discharge Rate | 10 Hr |
| Shelf Life | 12 Months |
| Size / Dimension [diameter] | 1.75 " |
| Size / Dimension [diameter] | 44.5 mm |
| Size / Dimension [z] | 3.94 in |
| Size / Dimension [z] | 100.1 mm |
| Termination Style | Spade, .250" (6.3mm) |
| Voltage - Rated | 2 VDC |
| Weight | 499 g |
Sealed Lead Acid Battery
| Part | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [diameter] | Battery Chemistry | Capacity | Discharge Rate | Voltage - Rated | Shelf Life | Weight | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|
ENERSYS 0850-0004 | 3.94 in | 1.75 " | 100.1 mm | 44.5 mm | Sealed Lead Acid (SLA, VRLA) | 8 Ah | 10 Hr | 2 VDC | 12 Months | 499 g | Spade, .250" (6.3mm) |
