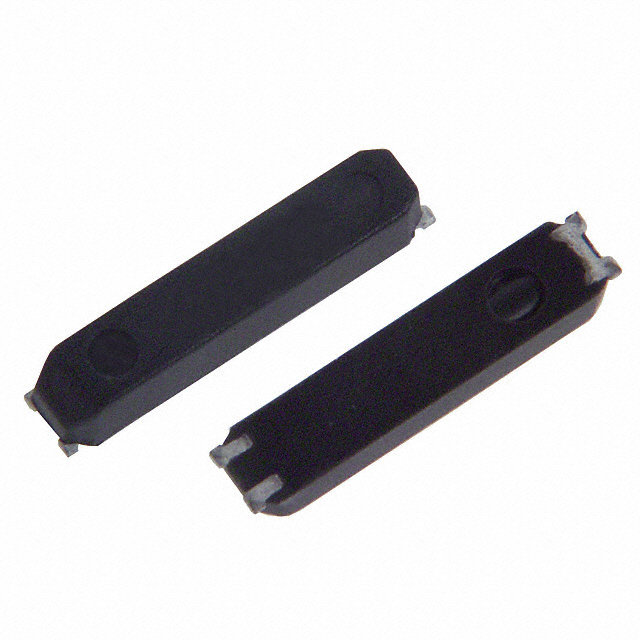

CM130-32.768KDZBTR
ObsoleteCitizen Finedevice Co Ltd
CRYSTAL 32.7680KHZ 6PF SMD
CM130-32.768KDZBTR
ObsoleteCitizen Finedevice Co Ltd
CRYSTAL 32.7680KHZ 6PF SMD
Description
General part information
CM130-32.768KDZBTR
32.768 kHz ±20ppm Crystal 6pF 65 kOhms 4-SMD, Flat Lead, 3 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | CM130-32.768KDZBTR |
|---|---|
| ESR (Equivalent Series Resistance) | 65 kOhm |
| Frequency | 0.032768 MHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 0.055 in |
| Load Capacitance | 6 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 3 Leads |
| Package Name | 4-SMD |
| Size / Dimension Length | 0.264 in |
| Size / Dimension Width | 0.055 in |
| Type | kHz Crystal (Tuning Fork) |
