031-10-1002

Active

AMPHENOL RF

CONN BNC JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN BNC JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-10-1002	031-10 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Phosphor Bronze	Phosphor Bronze
Center Contact Plating	Gold	Gold, Silver
Connector Style	BNC	BNC
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder Cup	Solder Cup
Dielectric Material	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO), Copolymer
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Isolated
Frequency - Max	-	4 GHz
Housing Color	White, Silver	White, Silver
Impedance	50 Ohms	50 - 75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.2 dB	0.2 dB
Material	-	Brass
Mating Cycles	500	500
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut, Flange
Number of Ports	1	1
Operating Temperature	-	-65 ░C
Operating Temperature	-	165 °C
Plating	-	Nickel over Copper
Shield Termination	Solder	Solder
Thickness	-	0.093 in
Thickness	-	2.36 mm
Thread Size	-	3/8"-32
Type	-	Hex
Voltage Rating	-	500 V
Width	-	12.57 mm
Width	-	0.495 in

CONN BNC 0HZ TO 1GHZ 75OHM SOLDER CUP ST PANEL MOUNT F GOLD

Part	Connector Type	Frequency - Max [Max]	Shield Termination	Impedance	Insertion Loss	Mating Cycles	Connector Style	Center Contact Material	Includes	Fastening Type	Mounting Feature	Contact Termination	Number of Ports	Housing Color	Center Contact Plating	Body Finish	Body Material	Voltage Rating	Features	Dielectric Material	Material	Type	Thickness	Thickness	Thread Size	Plating	Width [y]	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]
AMPHENOL RF 031-10-75RFXG2	Female Socket, Jack	4 GHz	Solder	75 Ohms	0.2 dB	500	BNC	Phosphor Bronze	1 Connector, 1 Lockwasher, 1 Nut	Bayonet Lock	Bulkhead - Rear Side Nut	Solder Cup	1	Silver, White	Gold	Nickel	Brass	500 V	Isolated
AMPHENOL RF 031-10-1002	Female Socket, Jack		Solder	50 Ohms	0.2 dB	500	BNC	Phosphor Bronze	1 Connector, 1 Lockwasher, 1 Nut	Bayonet Lock	Bulkhead - Rear Side Nut	Solder Cup	1	Silver, White	Gold	Nickel	Brass			Polyphenylene Oxide (PPO)
AMPHENOL RF 031-10495-NA																					Brass	Hex	0.093 in	2.36 mm	3/8"-32	Nickel over Copper	12.57 mm	0.495 in
AMPHENOL RF 031-105	Female Socket, Jack	4 GHz	Solder	50 Ohms	0.2 dB	500	BNC			Bayonet Lock	Flange	Solder Cup	1	Silver	Silver	Nickel	Brass	500 V		Copolymer									-65 ░C	165 °C
AMPHENOL RF 031-10-RFXG1	Female Socket, Jack	4 GHz	Solder	50 Ohms	0.2 dB	500	BNC	Phosphor Bronze	1 Connector, 1 Lockwasher, 1 Nut	Bayonet Lock	Bulkhead - Rear Side Nut	Solder Cup	1	Silver, White	Gold	Nickel	Brass	500 V	Isolated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

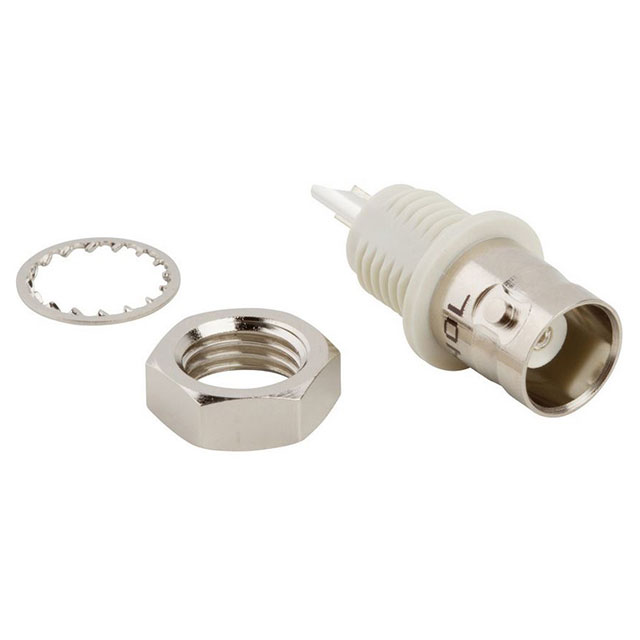

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
