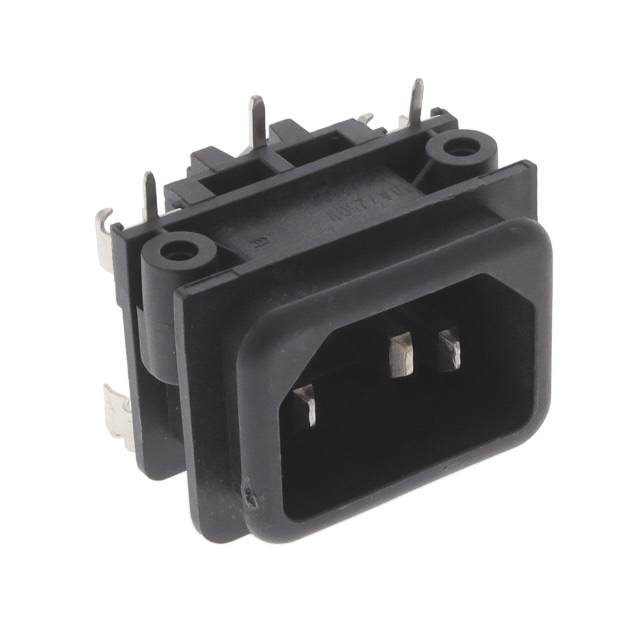

GSF1.2002.71
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSF1.2002.71
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GSF1.2002.71 | GSF1.2002 Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | CCC, UL, CSA, ENEC | CCC, UL, CSA, ENEC |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Features | - | Mounting Hardware |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Fuse Holder, Drawer | - | Fuse Holder |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | - | Panel Mount, Flange, Through Hole, Right Angle |
| Panel Cutout Dimensions | - | 30.3 mm |
| Panel Cutout Dimensions | - | 22.3 mm |
| Panel Thickness | - | 0.079 - 0.236 in |
| Panel Thickness | - | 2 - 6 mm |
| Panel Thickness | - | 0.059 in |
| Panel Thickness | - | 1.5 mm |
| Panel Thickness | - | 2.5 mm |
| Panel Thickness | - | 0.098 in |
| Termination | - | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
GSF1.2002 Series
AC POWER ENTRY MODULES GSF1 PWR ENTRY MODUL 10A
| Part | Accomodates a Fuse | Filter Type | Connector Style | Mounting Type | Panel Thickness | Panel Thickness | Voltage Rating - Appliance Inlet | Current Rating - Appliance Inlet | Fuse Holder, Drawer | Connector Type | Approval Agency | Ingress Protection | Termination | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Features | Material Flammability Rating | Panel Thickness [custom] | Panel Thickness [custom] | Panel Thickness [x] | Panel Thickness [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. GSF1.2002.01 | Unfiltered - Commercial | IEC 320-C14 | Panel Mount, Flange, Through Hole, Right Angle | 0.236 in | 6 mm | 250 VAC | 10 A | Fuse Holder | Receptacle, Male Blades - Module | CCC, CSA, ENEC, UL | IP40 | Solder | 30.3 mm | 22.3 mm | Mounting Hardware | UL94 V-0 | |||||
SCHURTER Inc. GSF1.2002.31 | Unfiltered - Commercial | IEC 320-C14 | Panel Mount, Flange, Through Hole, Right Angle | 250 VAC | 10 A | Fuse Holder | Receptacle, Male Blades - Module | CCC, CSA, ENEC, UL | IP40 | Solder | Mounting Hardware | UL94 V-0 | 0.059 in | 1.5 mm | |||||||
SCHURTER Inc. GSF1.2002.51 | Unfiltered - Commercial | IEC 320-C14 | Panel Mount, Flange, Through Hole, Right Angle | 250 VAC | 10 A | Fuse Holder | Receptacle, Male Blades - Module | CCC, CSA, ENEC, UL | IP40 | Solder | Mounting Hardware | UL94 V-0 | 2.5 mm | 0.098 in | |||||||
SCHURTER Inc. GSF1.2002.41 | Unfiltered - Commercial | IEC 320-C14 | Panel Mount, Flange, Through Hole, Right Angle | 0.079 in | 2 mm | 250 VAC | 10 A | Fuse Holder | Receptacle, Male Blades - Module | CCC, CSA, ENEC, UL | IP40 | Solder | Mounting Hardware | UL94 V-0 | |||||||
SCHURTER Inc. GSF1.2002.71 | Unfiltered - Commercial | IEC 320-C14 | 250 VAC | 10 A | Receptacle, Male Blades - Module | CCC, CSA, ENEC, UL | IP40 | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.66 | |
Description
General part information
GSF1.2002 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14
