DMV1500SDFD6
ActiveSTMicroelectronics

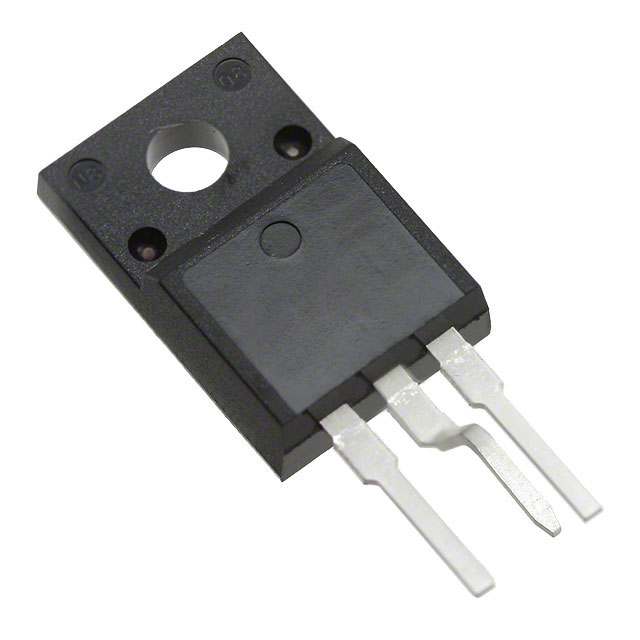

DIODE ARRAY 600V 6A TO220FPAB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DMV1500SDFD6
ActiveSTMicroelectronics
DIODE ARRAY 600V 6A TO220FPAB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DMV1500SDFD6 | DMV1500 Series |
|---|---|---|
| Current - Average Rectified (Io) (per Diode) | 6 A | 6 A |
| Current - Max | - | 6 A |
| Current - Reverse Leakage @ Vr | 3 µA | 3 µA |
| Diode Configuration | 1 Pair Series Connection | 1 Pair Series Connection |
| Diode Type | - | Standard - 1 Pair Series Connection |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature | - | 150 °C |
| Operating Temperature - Junction | 150 ¯C | 150 ¯C |
| Package / Case | TO-220-3 Full Pack, Formed Leads | TO-220-3 Full Pack, Formed Leads, TO-220-3 Full Pack |
| Reverse Recovery Time (trr) | 400 ns | 400 ns |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | TO-220FPAB FD6 | TO-220FPAB FD6, TO-220FPAB F5 |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.75 V | 1.75 V |
| Voltage - Peak Reverse (Max) | - | 1500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1350 | $ 0.64 | |
DMV1500 Series
DIODE ARRAY 600V 6A TO220FPAB
| Part | Mounting Type | Diode Configuration | Reverse Recovery Time (trr) | Package / Case | Speed | Operating Temperature - Junction | Supplier Device Package | Voltage - Forward (Vf) (Max) @ If | Current - Average Rectified (Io) (per Diode) | Voltage - DC Reverse (Vr) (Max) [Max] | Current - Reverse Leakage @ Vr | Diode Type | Current - Max [Max] | Operating Temperature | Voltage - Peak Reverse (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics DMV1500SDFD6 | Through Hole | 1 Pair Series Connection | 400 ns | TO-220-3 Full Pack, Formed Leads | 200 mA, 500 ns | 150 ¯C | TO-220FPAB FD6 | 1.75 V | 6 A | 600 V | 3 µA | ||||
STMicroelectronics DMV1500MFD5 | TO-220-3 Full Pack, Formed Leads | TO-220FPAB F5 | Standard - 1 Pair Series Connection | 6 A | 150 °C | 1500 V | |||||||||
STMicroelectronics DMV1500HDFD6 | TO-220-3 Full Pack | TO-220FPAB FD6 | Standard - 1 Pair Series Connection | 6 A | 1500 V |
Description
General part information
DMV1500 Series
Diode Array 1 Pair Series Connection 600 V 6A Through Hole TO-220-3 Full Pack, Formed Leads
