21650.6

Active

Pflitsch

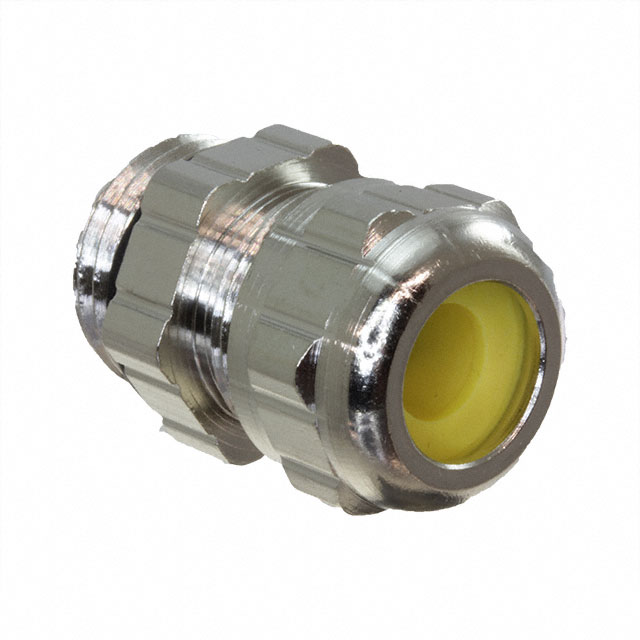

CABLE GLAND 4.06-6.6MM PG9 BRASS

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 4.06-6.6MM PG9 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	21650.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.26 in
Outside Cable Diameter (Max) [Max] [diameter]	6.6 mm
Outside Cable Diameter (Min) [Min] [diameter]	4.06 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.16 in
Panel Hole Size	15.2 mm
Panel Hole Size	0.6 in
Thread Length	0.24 in
Thread Length	6.1 mm
Thread Size	PG9
Type	Cable Gland

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Thread Size	Panel Hole Size	Panel Hole Size	Includes	Material	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Pflitsch 21650.6	-40 °C	300 °C	IP68 - Dust Tight Waterproof; NEMA 4X	PG9	15.2 mm	0.6 in	Sealing Ring	Brass Nickel Plated	0.24 in	6.1 mm	4.06 mm	0.16 in	Cable Gland	Silver	0.26 in	6.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG9 Silver
