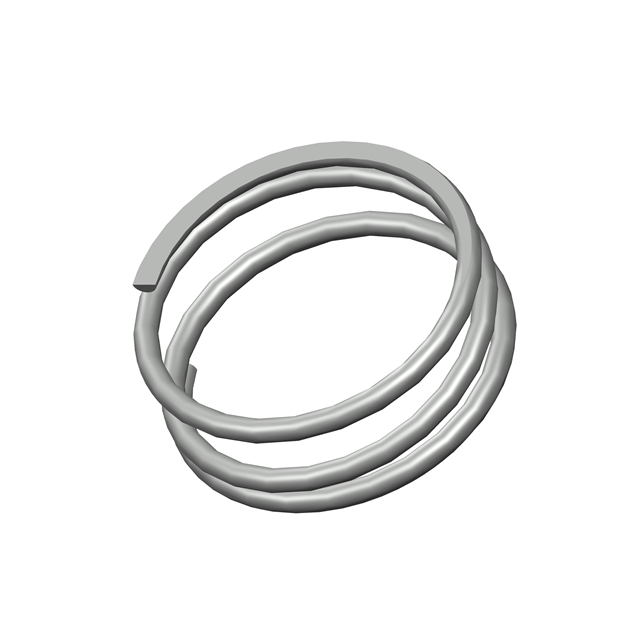

10160CS
ActiveCentury Spring Corp
COMP O=1.188,L= .44,W= .080
10160CS
ActiveCentury Spring Corp
COMP O=1.188,L= .44,W= .080
Description
General part information
10160CS
COMP O=1.188,L= .44,W= .080
Technical Specifications
Parameters and characteristics for this part
| Specification | 10160CS |
|---|---|
| Diameter - Inside | 1.028 in |
| Diameter - Outside | 1.188 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 0.44 in |
| Material | Spring Steel |
| Rate (lbs/in) | 43 lbs/in |
| Type | Compression |
| Wire Diameter | 0.08 in |
