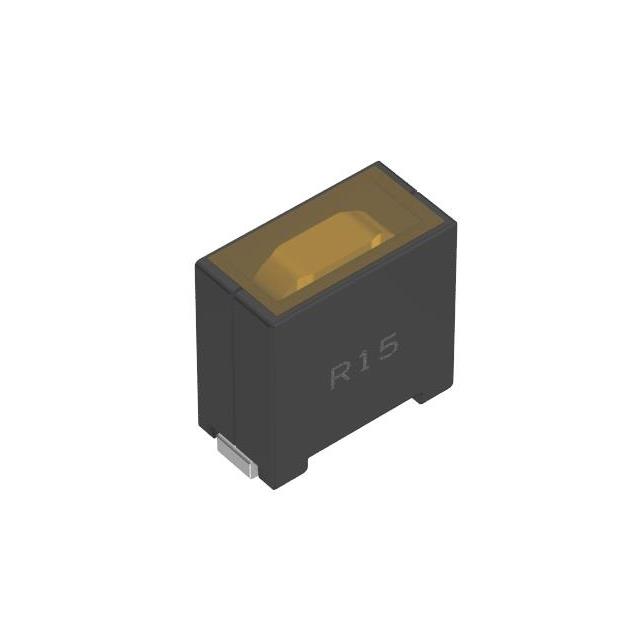

VLBUC12060120R09LF3
ActiveTDK Corporation
FIXED IND 90NH 138A 0.125MOHM SM
VLBUC12060120R09LF3
ActiveTDK Corporation
FIXED IND 90NH 138A 0.125MOHM SM
Description
General part information
VLBUC12060120R09LF3
90 nH Unshielded Wirewound Inductor 70 A 0.138mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLBUC12060120R09LF3 |
|---|---|
| Current - Saturation (Isat) | 138 A |
| Current Rating | 70 A |
| DC Resistance (DCR) (Max) | 0.138 mOhm |
| Height - Seated (Max) | 0.472 in |
| Inductance | 90 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.472 in |
| Size / Dimension Width | 0.236 in |
| Tolerance | 15 % |
| Type | Wirewound |
