XHP35A-0R-12-0D0BE450E

Obsolete

New Energy

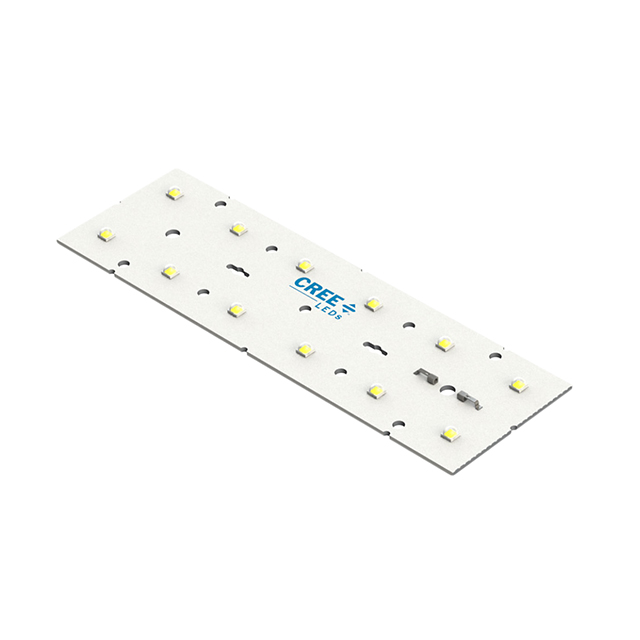

LED MOD XHP35A CL WH RECT 5000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XHP35A-0R-12-0D0BE450E

Obsolete

New Energy

LED MOD XHP35A CL WH RECT 5000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XHP35A Series

LED Lighting COBs Engines Modules LED Module XHP35A White, Cool Rectangle

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XHP35A-0R-12-0D0BE450E	XHP35A Series

CCT (K)	5000 K	2700 - 5700 K
CCT (K)	5-Step MacAdam Ellipse	5-Step MacAdam Ellipse
Color	Cool, White	Neutral, White, Warm, Cool
Configuration	Rectangle	Starboard, Rectangle
CRI (Color Rendering Index)	70	70 - 80
Current - Max [Max]	3.15 A	1.05 - 3.15 A
Current - Test	1.05 A	1.05 - 350 mA
Height	-	1.52 mm
Lens Type	Domed	Flat, Domed
Lumens/Watt @ Current - Test	161 lm/W	116 - 166 lm/W
Luminous Flux @ Current/Temperature	7620 lm	458 - 7620 lm
Size / Dimension	-	19.89 mm
Size / Dimension [x]	146.56 mm	2.25 - 146.61 in
Size / Dimension [y]	44.96 mm	44.96 - 45.01 mm
Temperature - Test	85 °C	85 °C
Type	LED Module	LED Module
Viewing Angle	-	115 - 125 °
Voltage - Forward (Vf) (Typ)	-	11.3 V

XHP35A Series

LED MOD XLAMP WH STARBOARD 4000K

Part	Lumens/Watt @ Current - Test	Lens Type	Type	Temperature - Test	Current - Max [Max]	Viewing Angle	Size / Dimension [diameter]	Configuration	CCT (K)	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Current - Test	Luminous Flux @ Current/Temperature	Color	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Height [z]
New Energy XHP35A-H0-0000-0D0BC440E-SB01	125 lm/W	Flat	LED Module	85 °C	1.05 A	115 °	19.89 mm	Starboard	4000 K	11.3 V	70	350 mA	493 lm	Neutral, White
New Energy XHP35A-H0-0000-0D0BC230E-SB01	116 lm/W	Flat	LED Module	85 °C	1.05 A	115 °	19.89 mm	Starboard	3000 K	11.3 V	70	350 mA	458 lm	Warm, White
New Energy XHP35A-0R-04-0D0BE240E	149 lm/W	Domed	LED Module	85 °C	1.05 A			Rectangle	4000 K		70	350 mA	2360 lm	Neutral, White	2.25 in	44.96 mm
New Energy XHP35A-0R-08-0D0BE240E	149 lm/W	Domed	LED Module	85 °C	2.1 A			Rectangle	4000 K		70		4720 lm	Neutral, White	107.95 mm	44.96 mm
New Energy XHP35A-0R-04-0D0BE450E	161 lm/W	Domed	LED Module	85 °C	1.05 A			Rectangle	5000 K		70	350 mA	2540 lm	Cool, White	2.25 in	44.96 mm	5-Step MacAdam Ellipse
New Energy XHP35A-0R-08-0D0HD450E		Flat	LED Module	85 °C	2.1 A			Rectangle	5000 K					Cool, White	110.39 mm	45.01 mm	5-Step MacAdam Ellipse	1.52 mm
New Energy XHP35A-0R-08-0D0UB427E		Flat	LED Module	85 °C	2.1 A			Rectangle	2700 K					Warm, White	110.39 mm	45.01 mm		1.52 mm
New Energy XHP35A-0R-12-0D0BE240E	149 lm/W	Domed	LED Module	85 °C	3.15 A			Rectangle	4000 K		70	1.05 A	7080 lm	Neutral, White	146.56 mm	44.96 mm
New Energy XHP35A-0R-04-0D0HD440E		Flat	LED Module	85 °C	1.05 A			Rectangle	4000 K			350 mA		Neutral, White	59.59 mm	45.01 mm		1.52 mm
New Energy XHP35A-0R-12-0D0BD430E	139 lm/W	Domed	LED Module	85 °C	3.15 A			Rectangle	3000 K		70	1.05 A	6600 lm	Warm, White	146.56 mm	44.96 mm
