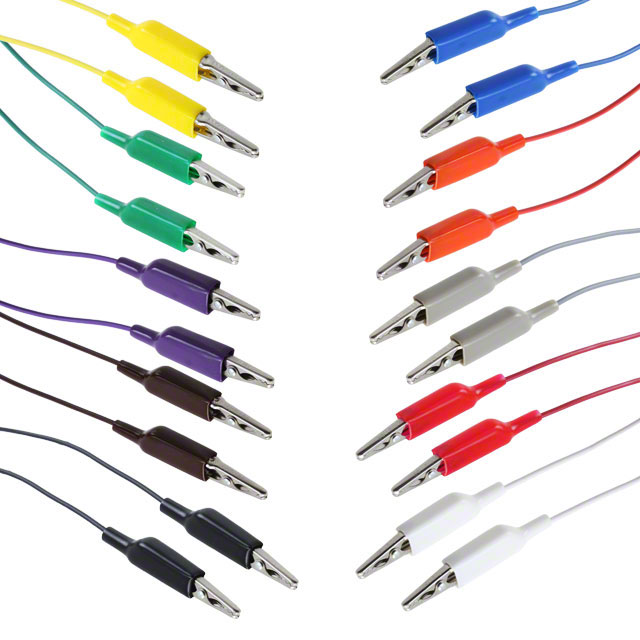

284M-36-S

Active

E-Z-Hook

TEST LEAD GATOR TO GATR 36" 10PC

Search across all available documentation for this part.

Active

E-Z-Hook

TEST LEAD GATOR TO GATR 36" 10PC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	284M-36-S	284M Series

1st Connector	Insulated, Miniature, Alligator Clip	Insulated, Miniature, Alligator Clip
2nd Connector	Insulated, Miniature, Alligator Clip	Insulated, Miniature, Alligator Clip
Cable Length	36 in	12 - 36 in
Cable Length	914.4 mm	304.8 - 914.4 mm
Contents	Multiple Colors	Multiple Colors, 1 Lead, Black, Black and Red, 2 Leads
Contents	10 Leads	10 Leads
Current Rating (Amps)	2.5 A	2.5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Temperature Range	105 °C	105 °C
Temperature Range	221 °F	221 °F
Voltage - Rated	1 kV	1 kV
Voltage - Rated	1000 V	1000 V
Wire Gauge	22 AWG	22 AWG

TEST LEAD GATOR TO GATR 36" 10PC

Part	Contents	Contents	1st Connector	Cable Length	Cable Length	Current Rating (Amps)	Temperature Range	Temperature Range	Voltage - Rated	Voltage - Rated	Wire Gauge	2nd Connector	Material - Insulation
E-Z-Hook 284M-36-S	Multiple Colors	10 Leads	Alligator Clip, Insulated, Miniature	36 in	914.4 mm	2.5 A	105 °C	221 °F	1 kV	1000 V	22 AWG	Alligator Clip, Insulated, Miniature	Poly-Vinyl Chloride (PVC)
E-Z-Hook 284M-12BLK	1 Lead, Black		Alligator Clip, Insulated, Miniature	12 in	304.8 mm	2.5 A	105 °C	221 °F	1 kV	1000 V	22 AWG	Alligator Clip, Insulated, Miniature	Poly-Vinyl Chloride (PVC)
E-Z-Hook 284M-12 R/B	2 Leads, Black and Red		Alligator Clip, Insulated, Miniature	12 in	304.8 mm	2.5 A	105 °C	221 °F	1 kV	1000 V	22 AWG	Alligator Clip, Insulated, Miniature	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36.0" (914.40mm) Alligator Clip, Miniature, Insulated To Alligator Clip, Miniature, Insulated Test Lead 1000VDC (1kV) 10 Leads, Multiple Colors
