1095964

Active

Phoenix Contact

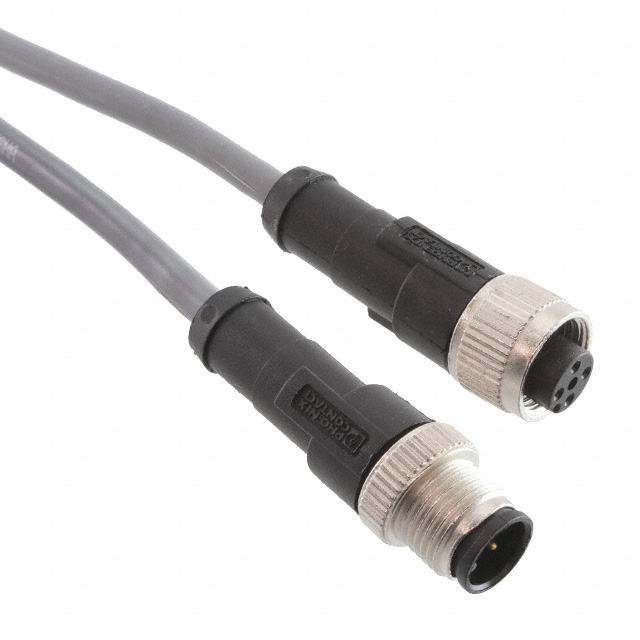

SENSOR CABLES / ACTUATOR CABLES SAC5PM12MS/0,5680 M12FS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1095964

Active

Phoenix Contact

SENSOR CABLES / ACTUATOR CABLES SAC5PM12MS/0,5680 M12FS

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.24
Sager	N/A	1	$ 26.35
		10	$ 25.30
		25	$ 22.59

Description

General part information

M12 Sensor Series

Sensor Cables / Actuator Cables SAC5P 5,0680/M12FR FDN

Documents

Technical documentation and resources

Datasheet

Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1095964	M12 Sensor Series

1st Connector Gender	Male Pins	Male Pins, Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	5	3 - 8
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation	A	A
1st Connector Shell Size - Insert	M12	M12
1st Connector Type	Plug	Plug, Right Angle, Receptacle, Plug, Receptacle, Right Angle
2nd Connector Gender	Female Sockets	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Connector Number of Positions	5	4 - 8
2nd Connector Number of Positions Loaded	All	All
2nd Connector Shell Size - Insert	M12	M12
2nd Connector Type	Receptacle	Wire Leads, Receptacle
Assembly Configuration	Standard	Standard
Cable Material	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)
Cable Type	Round	Round
Color	Gray	Gray
Ingress Protection	IP65, IP68, IP67	IP65, IP68, IP67
Length	-	4.92 - 131.2 ft
Length	-	1.5 - 40 m
Length [x]	1.64 ft	1.64 - 49.2 ft
Length [x]	500 mm	2 - 500 m
Shielding	Shielded	Shielded

M12 Sensor Series

Sensor Cables / Actuator Cables SAC5P 5,0680/M12FR FDN

...

Part	1st Connector Shell Size - Insert	Cable Type	Assembly Configuration	1st Connector Orientation	Ingress Protection	Shielding	1st Connector Gender	1st Connector Type	2nd Connector Type	1st Connector Number of Positions Loaded	1st Connector Mounting Type	1st Connector Number of Positions	Color	Cable Material	Length [x]	Length [x]	2nd Connector Shell Size - Insert	2nd Connector Gender	2nd Connector Mounting Type	2nd Connector Number of Positions	2nd Connector Number of Positions Loaded	Length	Length
Phoenix Contact 1095909	M12	Round	Standard	A	IP65, IP67, IP68	Shielded	Male Pins	Plug, Right Angle	Wire Leads	All	Free Hanging (In-Line)	4	Gray	Polyvinyl Chloride (PVC)
Phoenix Contact 1096025	M12	Round	Standard	A	IP65, IP67, IP68	Shielded	Female Sockets	Receptacle	Wire Leads	All	Free Hanging (In-Line)	4	Gray	Polyvinyl Chloride (PVC)	15 m	49.2 ft
Phoenix Contact 1095841	M12	Round	Standard	A	IP65, IP67, IP68	Shielded	Male Pins	Plug, Right Angle	Wire Leads	All	Free Hanging (In-Line)	4	Gray	Polyvinyl Chloride (PVC)
Phoenix Contact 1095857	M12	Round	Standard	A	IP65, IP67, IP68	Shielded	Male Pins	Plug	Wire Leads	All	Free Hanging (In-Line)	4	Gray	Polyvinyl Chloride (PVC)	2 m	6.56 ft
Phoenix Contact 1095815	M12	Round	Standard	A	IP65, IP67, IP68	Shielded	Female Sockets	Receptacle, Right Angle	Wire Leads	All	Free Hanging (In-Line)	5	Gray	Polyvinyl Chloride (PVC)	15 m	49.2 ft
Phoenix Contact 1095845	M12	Round	Standard	A	IP65, IP67, IP68	Shielded	Male Pins	Plug	Receptacle	All	Free Hanging (In-Line)	8 positions	Gray	Polyvinyl Chloride (PVC)			M12	Female Sockets	Free Hanging (In-Line)	8	All
Phoenix Contact 1095893	M12	Round	Standard	A	IP65, IP67, IP68	Shielded	Male Pins	Plug	Receptacle	All	Free Hanging (In-Line)	4	Gray	Polyvinyl Chloride (PVC)			M12	Female Sockets	Free Hanging (In-Line)	4	All
Phoenix Contact 1095809	M12	Round	Standard	A	IP65, IP67, IP68	Shielded	Male Pins	Plug	Receptacle	All	Free Hanging (In-Line)	8 positions	Gray	Polyvinyl Chloride (PVC)	3 m	9.84 ft	M12	Female Sockets	Free Hanging (In-Line)	8	All
Phoenix Contact 1095803	M12	Round	Standard	A	IP65, IP67, IP68	Shielded	Male Pins	Plug	Receptacle	All	Free Hanging (In-Line)	8 positions	Gray	Polyvinyl Chloride (PVC)	15 m	49.2 ft	M12	Female Sockets	Free Hanging (In-Line)	8	All
Phoenix Contact 1096017	M12	Round	Standard	A	IP65, IP67, IP68	Shielded	Female Sockets	Receptacle, Right Angle	Wire Leads	All	Free Hanging (In-Line)	4	Gray	Polyvinyl Chloride (PVC)								131.2 ft	40 m
