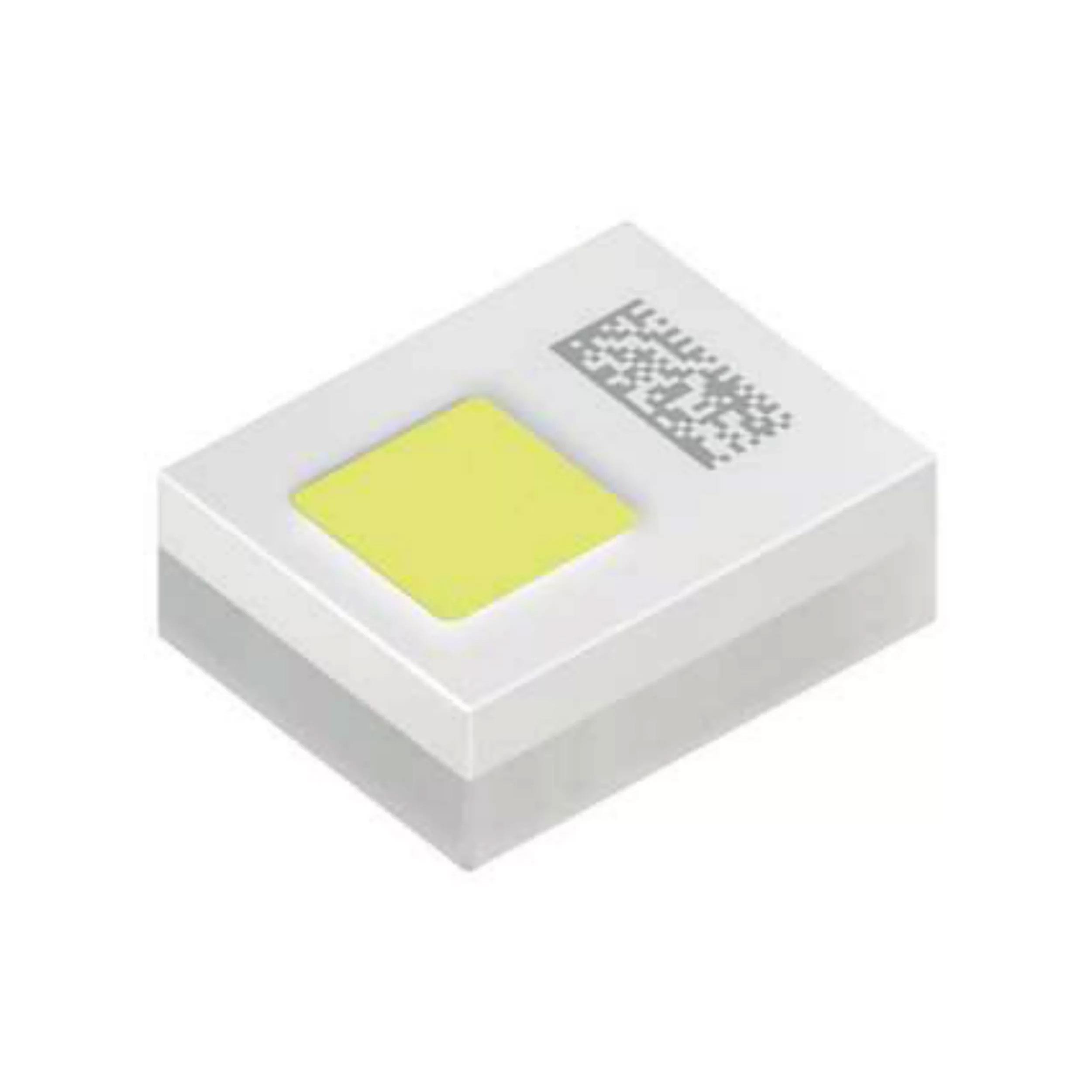

KW CELMM2.TK-S2S8-4L25M2-0-R18
Activeams-OSRAM USA INC.
THE OLSON BOOST HM GEN2 DELIVERS
KW CELMM2.TK-S2S8-4L25M2-0-R18
Activeams-OSRAM USA INC.
THE OLSON BOOST HM GEN2 DELIVERS
Description
General part information
KW CELMM2.TK-S2S8-4L25M2-0-R18
LED Lighting -
Technical Specifications
Parameters and characteristics for this part
| Specification | KW CELMM2.TK-S2S8-4L25M2-0-R18 |
|---|---|
| Color | White |
| Current - Max | 1.3 A |
| Current - Test | 1.2 A |
| Flux (Maximum) | 510 lm |
| Flux (Minimum) | 355 lm |
| Flux (Nominal) | 433 lm |
| Grade | Automotive |
| Height - Seated (Max) | 0.03 in |
| Lumens/Watt | 106 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | No Lead, 2-SMD |
| Qualification | AEC-Q102 |
| Size / Dimension Length | 0.075 in |
| Size / Dimension Width | 0.059 in |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
