153230-2020-RB

Active

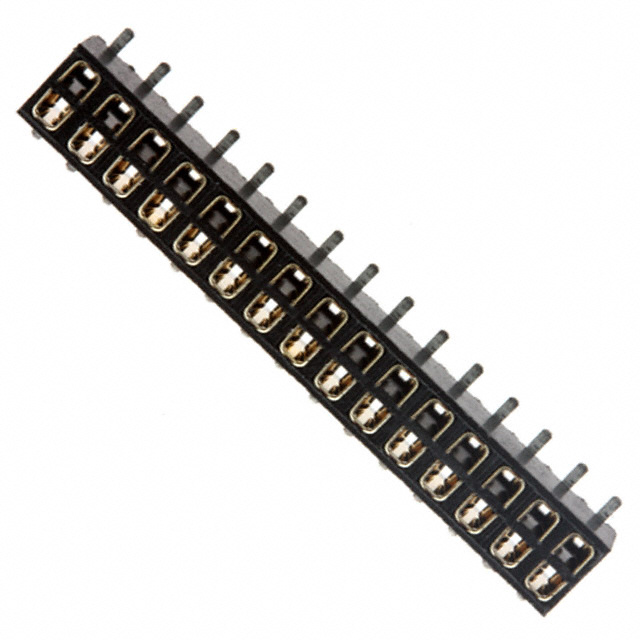

CONN RCPT 30POS 0.079 GOLD SMD

Search across all available documentation for this part.

Active

CONN RCPT 30POS 0.079 GOLD SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	153230-2020-RB	153230 Series

Connector Type	Receptacle, Bottom or Top Entry	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	Board Guide	Board Guide
Insulation Color	Black	Black
Insulation Height	0.129 in	0.129 in
Insulation Height	3.28 mm	3.28 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	30	30
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

CONN RCPT 30POS 0.079 GOLD SMD

Part	Style	Voltage Rating	Number of Rows	Insulation Color	Number of Positions Loaded	Fastening Type	Number of Positions	Contact Finish - Post	Material Flammability Rating	Contact Material	Contact Shape	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Finish - Mating	Mounting Type	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Features	Termination	Operating Temperature [Max]	Operating Temperature [Min]
3M 153230-2020-RB	Board to Board, Cable	500 V	2	Black	All	Push-Pull	30	Tin	UL94 V-0	Copper Alloy	Square	0.129 in	3.28 mm	30 Áin	0.76 Ám	Receptacle, Bottom or Top Entry	Gold	Surface Mount	Female Socket	0.079 in	2 mm	0.079 in	2 mm	Board Guide	Solder	105 ░C	-55 °C
3M 153230-2000-RB	Board to Board, Cable	500 V	2	Black	All	Push-Pull	30	Tin	UL94 V-0	Copper Alloy	Square	0.129 in	3.28 mm	30 Áin	0.76 Ám	Receptacle, Bottom or Top Entry	Gold	Surface Mount	Female Socket	0.079 in	2 mm	0.079 in	2 mm		Solder	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

30 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold
