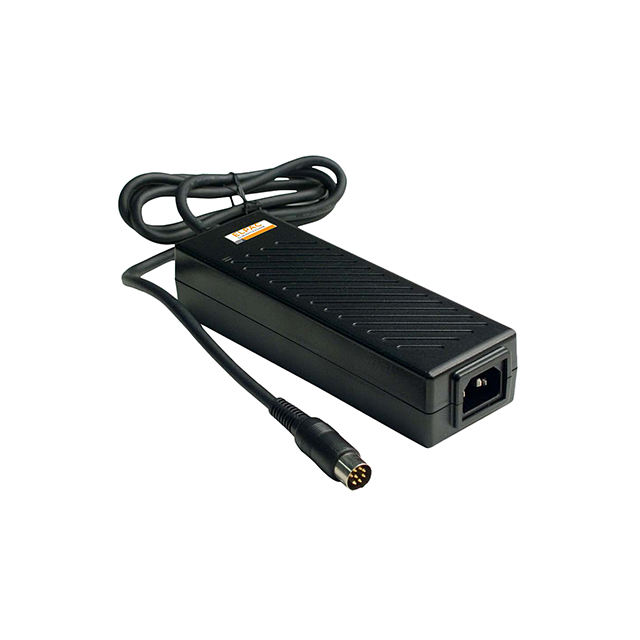

FWC100012A-12A

Active

Inventus Power

AC/DC DESKTOP ADAPTER 12V 100W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 12V 100W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 12V 100W

Part	Operating Temperature [Max]	Operating Temperature [Min]	No Load Power Consumption	Power (Watts)	Output Connector	Output Connector	Applications	Approval Agency	Input Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Cord Length	Cord Length	Efficiency	Current - Output (Max) [Max]	Region Utilized	Form	Weight	Weight	Input Type	Voltage - Output
Inventus Power FWC100012A-12A	60 °C	0 °C	200 mW	100 W	8 Pin	DIN	ITE (Commercial)	CB, CE, cTUVus	IEC 320-C14	2.27 in	180.2 mm	1.52 in	7.09 in	57.5 mm	38.6 mm	1.22 m	48 in	Level VI	8.3 A	International	Desktop (Class I)	1.5 lb	680.4 g	Cord	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 100 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Technical documentation and resources

No documents available
