MAX11195EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVKIT FOR MAX11195 DUAL SIMULTAN
Deep-Dive with AI
Search across all available documentation for this part.
MAX11195EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVKIT FOR MAX11195 DUAL SIMULTAN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11195EVKIT# | MAX11195 Series |
|---|---|---|
| Architecture | - | SAR |
| Configuration | - | S/H-ADC |
| Data Interface | - | SPI |
| Features | - | Simultaneous Sampling |
| Input Type | - | Differential |
| Mounting Type | - | Surface Mount |
| Number of A/D Converters | 2 | 2 |
| Number of Bits | 14 | 14 |
| Number of Inputs | - | 2 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 16-WFQFN Exposed Pad |
| Ratio - S/H:ADC | - | 1:1 |
| Reference Type | - | External |
| Sampling Rate (Per Second) | 2M | 2M |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-TQFN (2x3) |
| Utilized IC / Part | MAX11195 | MAX11195 |
| Voltage - Supply, Analog | - | 5.25 V |
| Voltage - Supply, Analog | - | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 87.01 | |
MAX11195 Series
IC ADC 14BIT SAR 16TQFN
| Part | Configuration | Number of Inputs | Input Type | Ratio - S/H:ADC | Data Interface | Package / Case | Mounting Type | Number of Bits | Operating Temperature [Max] | Operating Temperature [Min] | Reference Type | Features | Architecture | Sampling Rate (Per Second) | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Supplier Device Package | Number of A/D Converters | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11195ATE+T | S/H-ADC | 2 | Differential | 1:1 | SPI | 16-WFQFN Exposed Pad | Surface Mount | 14 | 125 °C | -40 °C | External | Simultaneous Sampling | SAR | 2M | 5.25 V | 3 V | 16-TQFN (2x3) | 2 | ||
Analog Devices Inc./Maxim Integrated MAX11195EVKIT# | 14 | 2M | 2 | Board(s) | MAX11195 |
Description
General part information
MAX11195 Series

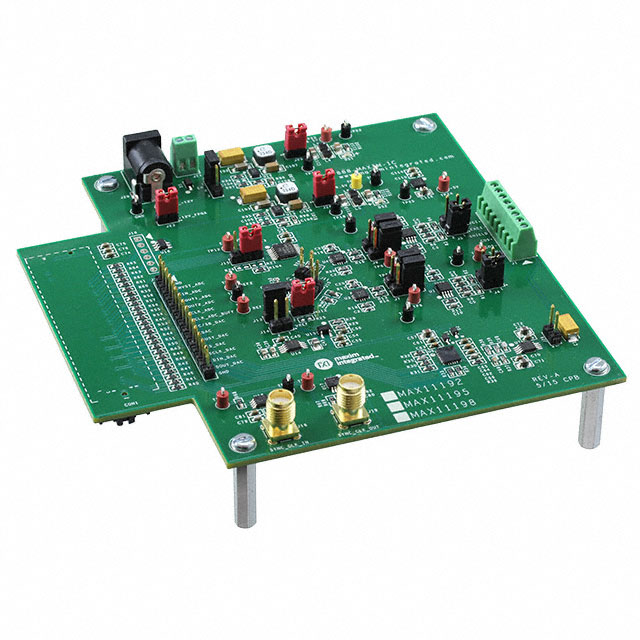

MAX11195 - 14 Bit 2M Samples per Second Analog to Digital Converter (ADC) Evaluation Board
