TRAPC5MX

Active

Switchcraft Inc.

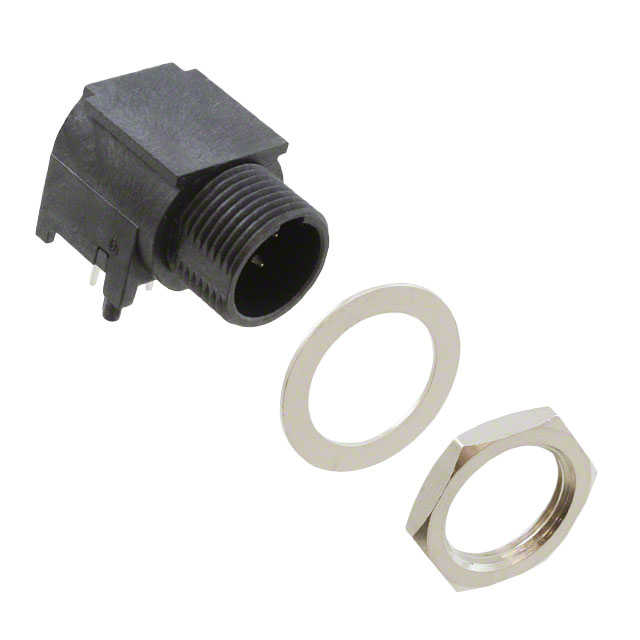

CONN RCPT MALE MINI XLR 5P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 5P SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TRAPC5MX	TRAPC5 Series

Applications	Medical, Testing Equipment & Measurement, Audio	Medical, Testing Equipment & Measurement, Audio
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Material	Brass	Brass
Current Rating (Amps)	5 A	5 A
Fastening Type	Latch Lock	Latch Lock
Features	Board Guide	Board Guide
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Size - Insert	Mini XLR	Mini XLR
Termination	Solder	Solder

CONN RCPT MALE MINI XLR 5P SLDR

Part	Fastening Type	Current Rating (Amps)	Mounting Feature	Applications	Mounting Type	Insert Material	Connector Type	Shell Size - Insert	Color	Termination	Primary Material	Features	Contact Material	Orientation
Switchcraft Inc. TRAPC5MX	Latch Lock	5 A	Bulkhead - Front Side Nut	Audio, Medical, Testing Equipment & Measurement	Through Hole, Right Angle	Thermoplastic	Male Pins, Receptacle	Mini XLR	Black	Solder	Plastic	Board Guide	Brass	Keyed
Switchcraft Inc. TRAPC5M1X	Latch Lock	5 A		Audio, Medical, Testing Equipment & Measurement	Through Hole, Right Angle	Thermoplastic	Male Pins, Receptacle	Mini XLR	Black	Solder	Plastic	Board Guide	Brass	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder
