MS3126F-12-3S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3126F-12-3S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3126F-12-3S | MS3126F12 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Cable Opening | - | 0.312 in |
| Cable Opening | - | 7.93 mm |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | - | 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Coupling Nut, Backshell | Cable Clamp, Coupling Nut, Backshell, Strain Relief |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | - | Bulkhead - Front Side Nut |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 10 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | Z, N, Y |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 12-3 | 12-3 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | - | 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 92.74 | |
| 10 | $ 85.10 | |||
| 25 | $ 81.83 | |||
| 50 | $ 79.10 | |||
| 100 | $ 74.73 | |||
MS3126F12 Series
CONN PLUG MALE 10POS GOLD CRIMP
| Part | Shielding | Contact Finish - Mating | Ingress Protection | Fastening Type | Shell Finish | Connector Type | Insert Material | Number of Positions | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Grade | Features | Color | Mounting Feature | Shell Material | Backshell Material, Plating | Contact Material | Orientation | Termination | Qualification | Primary Material | Shell Size - Insert | Mounting Type | Current Rating (Amps) | Cable Opening [diameter] | Cable Opening [diameter] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3126F12-10PZ | Unshielded | Gold | Environment Resistant | Bayonet Lock | Olive Drab Chromate over Cadmium | Male Pins, Plug | Neoprene | 10 | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | -55 °C | 125 °C | Military | Backshell, Cable Clamp, Coupling Nut | Olive Drab | Bulkhead - Front Side Nut | Aluminum | Aluminum, Olive Drab Chromate over Cadmium | Copper Alloy | Z | Crimp | MIL-DTL-26482 Series I | Metal | ||||||
Amphenol Industrial Operations MS3126F-12-3S | Unshielded | Gold | Environment Resistant | Bayonet Lock | Olive Drab Chromate over Cadmium | Female Sockets, Plug | Neoprene | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | -55 °C | 125 °C | Military | Backshell, Cable Clamp, Coupling Nut | Olive Drab | Aluminum | Aluminum, Olive Drab Chromate over Cadmium | Copper Alloy | N | Crimp | MIL-DTL-26482 Series I | Metal | 12-3 | Free Hanging (In-Line) | ||||||
Amphenol Industrial Operations MS3126F12-3SY | Unshielded | Gold | Environment Resistant | Bayonet Lock | Olive Drab Chromate over Cadmium | Female Sockets, Plug | Neoprene | Aerospace, Industrial, Instrumentation, Mass Transit, Military | -55 °C | 125 °C | Military | Coupling Nut, Strain Relief | Olive Drab | Aluminum | Copper Alloy | Y | Crimp | MIL-DTL-26482 Series I | Metal | 12-3 | Free Hanging (In-Line) | 13 A | 0.312 in | 7.93 mm | 1000 VAC | |||
Amphenol Industrial Operations MS3126F12-10S(LC) | ||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3126F12-8P(LC) |
Description
General part information
MS3126F12 Series

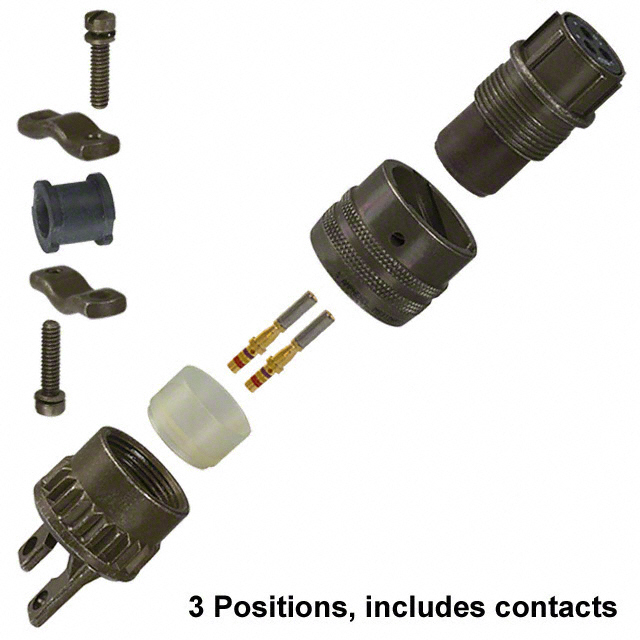

3 Position Circular Connector Plug, Female Sockets Crimp
Documents
Technical documentation and resources
