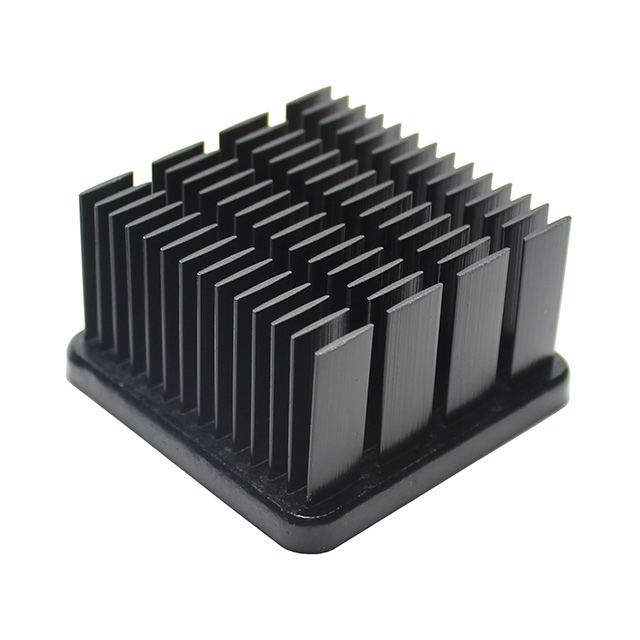

AER40-40-28CB/A01

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED BLK ANO TOP MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A01 Laminating Adhesive

AER40-40-28CB/A01

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED BLK ANO TOP MNT

Deep-Dive with AI

DocumentsDatasheet A01 Laminating Adhesive

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AER40-40-28CB/A01

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height [z]	27.6 mm
Fin Height [z]	1.087 in
Length	39.6 mm
Length	1.559 in
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Shelf Life	24 Months
Thermal Resistance @ Forced Air Flow	200 LFM, 1.72 °C/W
Thermal Resistance @ Natural	7.81 °C/W
Type	Top Mount
Width [x]	39.6 mm
Width [x]	1.559 in

AER40 Series

Part	Type	Shape	Material	Shelf Life	Width [x]	Width [x]	Material Finish	Length	Length	Fin Height	Fin Height	Package Cooled	Thermal Resistance @ Natural	Attachment Method	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]
Tusonix a Subsidiary of CTS Electronic Components AER40-40-23CB/A01	Top Mount	Fins Square	Aluminum Alloy	24 Months	39.6 mm	1.559 in	Black Anodized	39.6 mm	1.559 in	22.61 mm	0.89 in	ASIC BGA CPU LGA	8.41 °C/W	Thermal Tape Adhesive (Included)	2.02 °C/W
Tusonix a Subsidiary of CTS Electronic Components AER40-40-21CB/A01	Top Mount	Fins Square	Aluminum Alloy	24 Months	39.6 mm	1.559 in	Black Anodized	39.6 mm	1.559 in			ASIC BGA CPU LGA	8.71 °C/W	Thermal Tape Adhesive (Included)	2.12 °C/W 200 LFM	20.6 mm	0.811 in
Tusonix a Subsidiary of CTS Electronic Components AER40-40-12CB/A01	Top Mount	Fins Square	Aluminum Alloy	24 Months	39.6 mm	1.559 in	Black Anodized	39.6 mm	1.559 in			ASIC BGA CPU LGA	10.01 °C/W	Thermal Tape Adhesive (Included)	3.02 °C/W 200 LFM
Tusonix a Subsidiary of CTS Electronic Components AER40-40-18CB/A01	Top Mount	Fins Square	Aluminum Alloy	24 Months	39.6 mm	1.559 in	Black Anodized	39.6 mm	1.559 in			ASIC BGA CPU LGA	9.01 °C/W	Thermal Tape Adhesive (Included)	2.42 °C/W 200 LFM
Tusonix a Subsidiary of CTS Electronic Components AER40-40-15CB/A01	Top Mount	Fins Square	Aluminum Alloy	24 Months	39.6 mm	1.559 in	Black Anodized	39.6 mm	1.559 in			ASIC BGA CPU LGA	9.51 °C/W	Thermal Tape Adhesive (Included)	2.72 °C/W	14.6 mm	0.575 in
Tusonix a Subsidiary of CTS Electronic Components AER40-40-33CB/A01	Top Mount	Fins Square	Aluminum Alloy	24 Months	39.6 mm	1.559 in	Black Anodized	39.6 mm	1.559 in	32.6 mm	1.283 "	ASIC BGA CPU LGA	7.21 °C/W	Thermal Tape Adhesive (Included)	1.62 °C/W 200 LFM
Tusonix a Subsidiary of CTS Electronic Components AER40-40-28CB/A01	Top Mount	Fins Square	Aluminum Alloy	24 Months	39.6 mm	1.559 in	Black Anodized	39.6 mm	1.559 in			ASIC BGA CPU LGA	7.81 °C/W	Thermal Tape Adhesive (Included)	1.72 °C/W 200 LFM	27.6 mm	1.087 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 7.42

Description

General part information

AER40 Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Alloy Top Mount

Documents

Technical documentation and resources

Datasheet

A01 Laminating Adhesive

Datasheet
