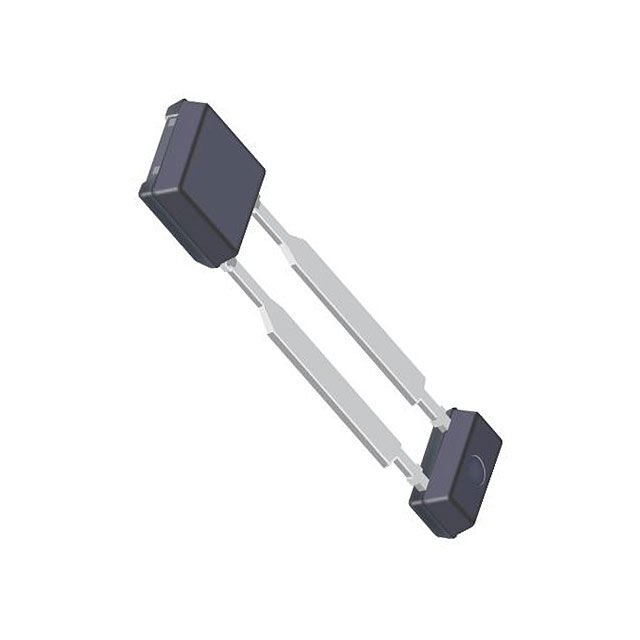

A17201LUBATN-I1
ActiveAllegro MicroSystems
MAG SWITCH SPEC PURPOSE 2SIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A17201LUBATN-I1
ActiveAllegro MicroSystems
MAG SWITCH SPEC PURPOSE 2SIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A17201LUBATN-I1 | A17201 Series |
|---|---|---|
| Current - Supply (Max) [Max] | 16 mA | 16 mA |
| Features | Temperature Compensated | Temperature Compensated |
| Function | Special Purpose | Special Purpose |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Current Source | Current Source |
| Package / Case | 2-SIP Module | 3-SSIP, 2-SIP Module |
| Sensing Range | -1.74 mT, 1.74 mT | -1.74 - 1.74 mT |
| Supplier Device Package | 2-UltraMini SIP | 3-SIP, 2-UltraMini SIP |
| Technology | Hall Effect | Hall Effect |
| Test Condition [Max] | 150 °C | 150 °C |
| Test Condition [Min] | -40 °C | -40 °C |
| Voltage - Supply [Max] | 24 V | 24 V |
| Voltage - Supply [Min] | 3.5 V | 3.5 V |
A17201 Series
MAGNETIC SWITCH SPEC PURP 3SIP
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Current - Supply (Max) [Max] | Package / Case | Output Type | Sensing Range | Function | Test Condition [Max] | Test Condition [Min] | Supplier Device Package | Features | Technology | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Allegro MicroSystems A17201LUAA-I1 | 3.5 V | 24 V | 16 mA | 3-SSIP | Current Source | -1.74 mT, 1.74 mT | Special Purpose | 150 °C | -40 °C | 3-SIP | Temperature Compensated | Hall Effect | -40 °C | 150 °C | Through Hole |
Allegro MicroSystems A17201LUBATN-I1 | 3.5 V | 24 V | 16 mA | 2-SIP Module | Current Source | -1.74 mT, 1.74 mT | Special Purpose | 150 °C | -40 °C | 2-UltraMini SIP | Temperature Compensated | Hall Effect | -40 °C | 150 °C | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 12000 | $ 1.15 | |
Description
General part information
A17201 Series
Digital Switch Special Purpose Current Source Hall Effect 2-UltraMini SIP
