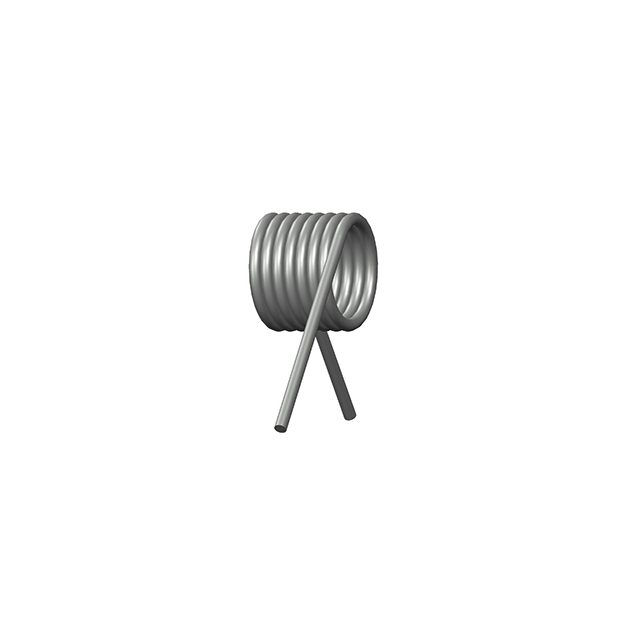

TO-1076CS
ActiveCentury Spring Corp
TOR, O=.157, W=.016
TO-1076CS
ActiveCentury Spring Corp
TOR, O=.157, W=.016
Description
General part information
TO-1076CS
TOR, O=.157, W=.016
Technical Specifications
Parameters and characteristics for this part
| Specification | TO-1076CS |
|---|---|
| Deflection Angle | 153 ° |
| Diameter - Outside | 0.16 in |
| Finish | None |
| Leg Length | 0.31 in |
| Mandrel Diameter | 0.1 in |
| Material | Spring Steel |
| Number of Coils | 7 |
| Wind Direction | Right |
| Wire Diameter | 0.016 in |
