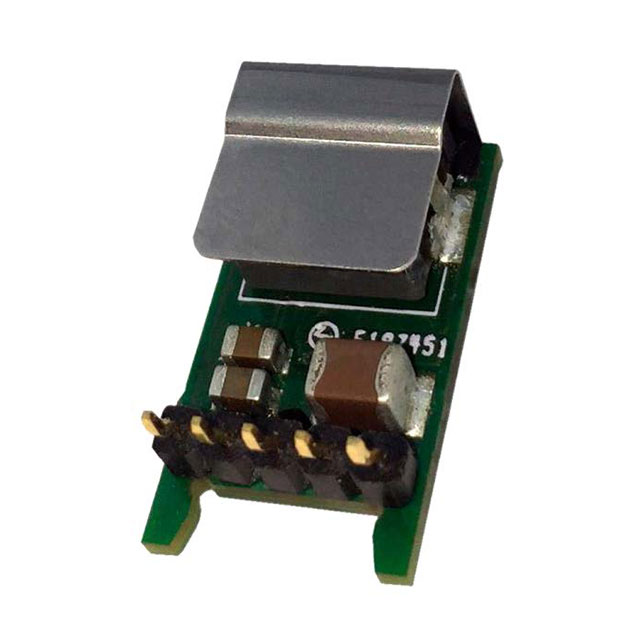

SRPE-03E1A0G

Active

Bel Power Solutions

DC DC CONVERTER 0.6-5.5V 17W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 0.6-5.5V 17W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 0.6-5.5V 17W

Part	Number of Outputs	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Efficiency	Mounting Type	Features	Type	Applications	Package / Case
Bel Power Solutions SRPE-03E1A0G	1	5.5 V	0.6 V	3 A	13.2 V	17 W	0.34 in	0.65 in	8.6 mm	16.5 mm	0.41 "	10.4 mm	5.5 V	92 %	Surface Mount	OCP, Remote On/Off, SCP, UVLO	Non-Isolated PoL Module	ITE (Commercial)	5-SMD Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 3A 5.5V - 13.2V Input

Technical documentation and resources

No documents available
