C204B-BW-LW65
ActiveFocus LCDs
20X4 STN BLUE CHARACTER LCD
C204B-BW-LW65
ActiveFocus LCDs
20X4 STN BLUE CHARACTER LCD
Description
General part information
C204B-BW-LW65

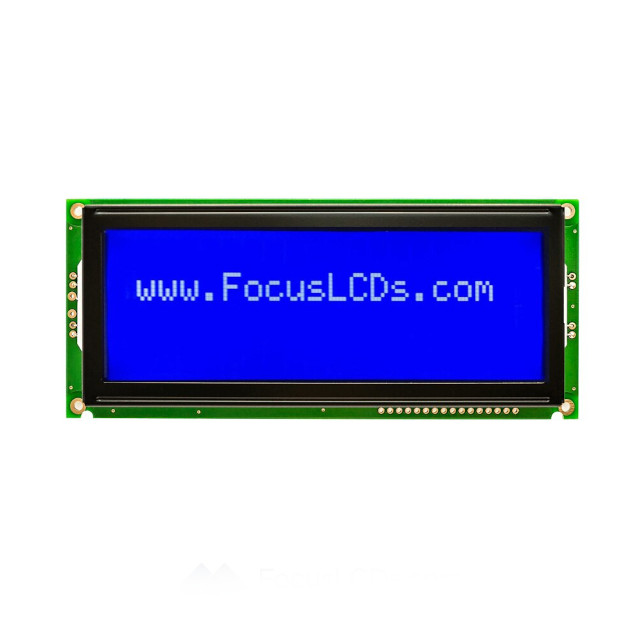

Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 146.00mm x 62.50mm x 14.50mm
Technical Specifications
Parameters and characteristics for this part
| Specification | C204B-BW-LW65 |
|---|---|
| Background Color | Blue |
| Backlight Color | White |
| Backlight Type | LED |
| Character Height | 9.22 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 4.84 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | ST7066U |
| Display Columns | 20 |
| Display Mode | Transmissive |
| Display Rows | 4 |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size Height | 1.1 mm |
| Dot Size Width | 0.92 mm |
| Interface | Parallel |
| Number of Characters | 80 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 14.5 mm |
| Outline Length | 146 mm |
| Outline Width | 62.5 mm |
| Text Color | White |
| Viewing Area Length | 123 mm |
| Viewing Area Width | 42.5 mm |
| Voltage - Supply | 5 VDC |
