T4171210505-001
ActiveTE Connectivity AMP Connectors

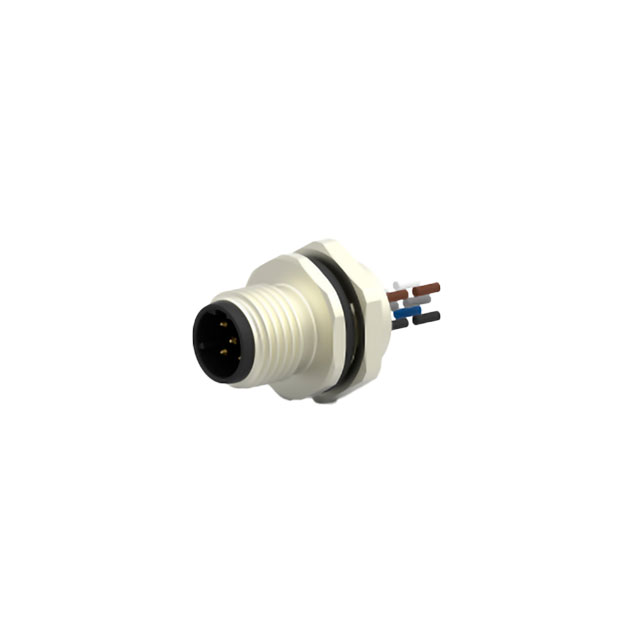

CBL CIRC 5POS MALE TO WIRE 0.66'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4171210505-001
ActiveTE Connectivity AMP Connectors
CBL CIRC 5POS MALE TO WIRE 0.66'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4171210505-001 | T41712 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Panel Mount | Panel Mount |
| 1st Connector Number of Positions | 5 | 5 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Number of Positions Loaded | - | 2 - 4 |
| 1st Connector Orientation | D | D, A, B |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Plug | Plug |
| 2nd Connector Type | Wire Leads | Wire Leads |
| Applications | - | Industrial |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC) |
| Cable Type | Individual | Individual |
| Color | Multiple | Multiple, Blue, Brown, Silver, Black |
| Connector Type | - | Receptacle, Male Pins |
| Contact Finish - Mating | - | Gold |
| Contact Finish Thickness - Mating | - | Flash |
| Contact Material | - | Copper Alloy |
| Current Rating (Amps) | - | 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | - | Nylon, Polyamide (PA) |
| Length | 200 mm | 200 mm |
| Length [x] | 0.66 ft | 0.66 ft |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Feature | - | Bulkhead - Rear Side Nut |
| Number of Positions | - | 4 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Orientation | - | A |
| Primary Material | - | Metal |
| Shell Finish | - | Nickel |
| Shell Material | - | Copper Alloy |
| Shell Size - Insert | - | M12-4 |
| Shielding | - | Shielded |
| Termination | - | Wire Leads |
| Usage | Industrial Environments | Industrial Environments |
| Voltage Rating | - | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 200 | $ 7.90 | |
T41712 Series
CIRC CBL 5POS PLUG TO WIRE 0.66'
| Part | 1st Connector Shell Size - Insert | Color | 1st Connector Number of Positions | 1st Connector Mounting Type | 1st Connector Type | Assembly Configuration | Length | Length [x] | Cable Type | 1st Connector Orientation | Cable Material | 1st Connector Gender | Ingress Protection | 1st Connector Number of Positions Loaded | 2nd Connector Type | Usage | Insert Material | Orientation | Contact Finish - Mating | Termination | Mounting Feature | Primary Material | Number of Positions | Applications | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Shell Material | Shielding | Contact Finish Thickness - Mating | Material Flammability Rating | Voltage Rating | Shell Finish | Current Rating (Amps) | Contact Material | 1st Connector Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4171210504-001 | M12 | Multiple | 5 | Panel Mount | Plug | Standard | 200 mm | 0.66 ft | Individual | D | Polyvinyl Chloride (PVC) | Male Pins | IP67 - Dust Tight, Waterproof | 4 | Wire Leads | Industrial Environments | |||||||||||||||||||||
TE Connectivity AMP Connectors T4171210502-001 | M12 | Blue, Brown | 5 | Panel Mount | Plug | Standard | 200 mm | 0.66 ft | Individual | D | Polyvinyl Chloride (PVC) | Male Pins | IP67 - Dust Tight, Waterproof | 2 | Wire Leads | Industrial Environments | |||||||||||||||||||||
TE Connectivity AMP Connectors T4171210003-001 | M12 | Multiple | 5 | Panel Mount | Plug | Standard | 200 mm | 0.66 ft | Individual | A | Polyvinyl Chloride (PVC) | Male Pins | IP67 - Dust Tight, Waterproof | 3 | Wire Leads | Industrial Environments | |||||||||||||||||||||
TE Connectivity AMP Connectors T4171210403-001 | M12 | Multiple | 5 | Panel Mount | Plug | Standard | 200 mm | 0.66 ft | Individual | B | Polyvinyl Chloride (PVC) | Male Pins | IP67 - Dust Tight, Waterproof | 3 | Wire Leads | Industrial Environments | |||||||||||||||||||||
TE Connectivity AMP Connectors T4171210004-001 | Silver | IP67 - Dust Tight, Waterproof | Nylon, Polyamide (PA) | A | Gold | Wire Leads | Bulkhead - Rear Side Nut | Metal | 4 | Industrial | M12-4 | 85 °C | -40 °C | Male Pins, Receptacle | Copper Alloy | Shielded | Flash | UL94 V-0 | 250 VDC | Nickel | 4 A | Copper Alloy | |||||||||||||||
TE Connectivity AMP Connectors T4171210005-001 | M12 | Multiple | 5 | Panel Mount | Plug | Standard | 200 mm | 0.66 ft | Individual | A | Polyvinyl Chloride (PVC) | Male Pins | IP67 - Dust Tight, Waterproof | Wire Leads | Industrial Environments | All | |||||||||||||||||||||
TE Connectivity AMP Connectors T4171210505-001 | M12 | Multiple | 5 | Panel Mount | Plug | Standard | 200 mm | 0.66 ft | Individual | D | Polyvinyl Chloride (PVC) | Male Pins | IP67 - Dust Tight, Waterproof | Wire Leads | Industrial Environments | All | |||||||||||||||||||||
TE Connectivity AMP Connectors T4171210402-001 | M12 | Black, Brown | 5 | Panel Mount | Plug | Standard | 200 mm | 0.66 ft | Individual | B | Polyvinyl Chloride (PVC) | Male Pins | IP67 - Dust Tight, Waterproof | 2 | Wire Leads | Industrial Environments |
Description
General part information
T41712 Series
Cable Assembly 0.66' (200.00mm)
Documents
Technical documentation and resources
