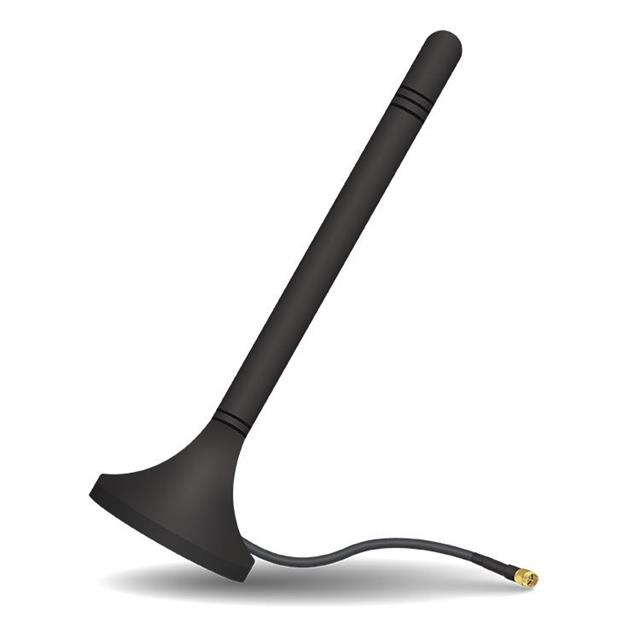

X9001248-4GMSMB1000R

Active

KYOCERA AVX

ANTENNA,LTE MAGNETIC 1000

Search across all available documentation for this part.

Active

KYOCERA AVX

ANTENNA,LTE MAGNETIC 1000

Technical Specifications

Parameters and characteristics for this part

ANTENNA,LTE MAGNETIC 1000

Part	Mounting Type	Return Loss	Frequency Range [Max]	Frequency Range [Min]	Frequency (Center/Band)	RF Family/Standard	Height (Max) [Max]	Height (Max) [Max]	Applications	Frequency Group	Number of Bands	Ingress Protection	Gain	Antenna Type
KYOCERA AVX X9001248-4GMSMB1000R	Magnetic	-6 dB, -5.8 dB, -5.2 dB	2.69 GHz, 960 MHz	1.71 GHz, 698 MHz	1.8 GHz, 2.1 GHz, 2.6 GHz, 700 MHz, 800 MHz, 900 MHz	802.15.4, Cellular	112 mm	4.409 in	LoRa, LTE, Sigfox	Wide Band	6	IP65	-5 dBi, -2 dBi, 1.8 dBi, 1.9 dBi	Whip, Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA LTE, LoRa, Sigfox Whip, Straight SMA Male Magnetic
