796949-8

Active

TE Connectivity AMP Connectors

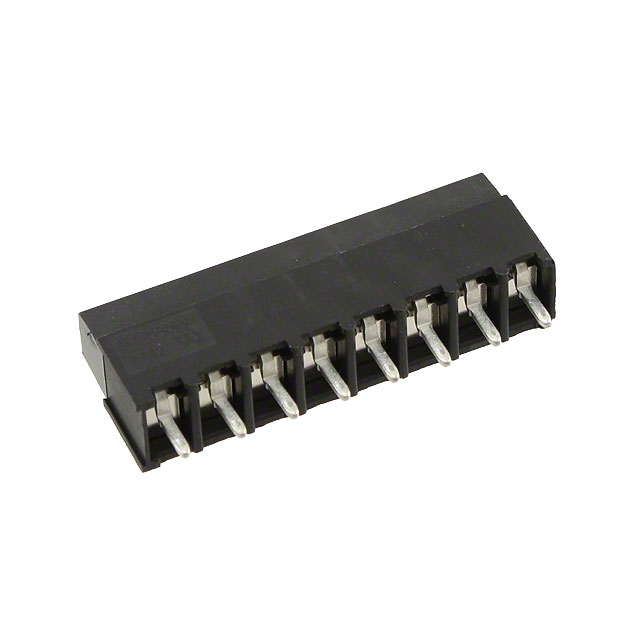

TERM BLK 8P SIDE ENT 5.08MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796949-8

Active

TE Connectivity AMP Connectors

TERM BLK 8P SIDE ENT 5.08MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.93
		10	$ 2.61
		25	$ 2.60
		50	$ 2.57
		100	$ 2.34

Description

General part information

796949 Series

8 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796949-8	796949 Series

Clamp Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Color	Black	Black
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side), Positions Stamped
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	8	3 - 14
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

796949 Series

TERM BLK 8P SIDE ENT 5.08MM PCB

Part	Clamp Material - Plating	Mounting Type	Pitch [x]	Pitch [x]	Number of Levels	Contact Material - Plating [custom]	Mating Orientation	Screw Thread	Wire Termination	Wire Gauge [Max]	Wire Gauge [Min]	Torque - Screw	Torque - Screw	Positions Per Level	Color	Current	Screw Material - Plating	Features	Voltage
TE Connectivity AMP Connectors 2-796949-8	Brass - Nickel Plated	Through Hole	0.2 in	5.08 mm	1	Brass - Tin Plated	Horizontal with Board	M3	Screw - Rising Cage Clamp	30 AWG	12 AWG	0.79 Nm	7 Lb-In	8	Black	17.5 A	Brass - Nickel Plated	Interlocking (Side), Positions Stamped	300 V
TE Connectivity AMP Connectors 796949-6	Brass - Nickel Plated	Through Hole	0.2 in	5.08 mm	1	Brass - Tin Plated	Horizontal with Board	M3	Screw - Rising Cage Clamp	30 AWG	12 AWG	0.79 Nm	7 Lb-In	6	Black	17.5 A	Brass - Nickel Plated	Interlocking (Side)	300 V
TE Connectivity AMP Connectors 796949-7	Brass - Nickel Plated	Through Hole	0.2 in	5.08 mm	1	Brass - Tin Plated	Horizontal with Board	M3	Screw - Rising Cage Clamp	30 AWG	12 AWG	0.79 Nm	7 Lb-In	7	Black	17.5 A	Brass - Nickel Plated	Interlocking (Side)	300 V
TE Connectivity AMP Connectors 1-796949-4	Brass - Nickel Plated	Through Hole	0.2 in	5.08 mm	1	Brass - Tin Plated	Horizontal with Board	M3	Screw - Rising Cage Clamp	30 AWG	12 AWG	0.79 Nm	7 Lb-In	14	Black	17.5 A	Brass - Nickel Plated	Interlocking (Side)	300 V
TE Connectivity AMP Connectors 796949-5	Brass - Nickel Plated	Through Hole	0.2 in	5.08 mm	1	Brass - Tin Plated	Horizontal with Board	M3	Screw - Rising Cage Clamp	30 AWG	12 AWG	0.79 Nm	7 Lb-In	5	Black	17.5 A	Brass - Nickel Plated	Interlocking (Side)	300 V
TE Connectivity AMP Connectors 796949-3	Brass - Nickel Plated	Through Hole	0.2 in	5.08 mm	1	Brass - Tin Plated	Horizontal with Board	M3	Screw - Rising Cage Clamp	30 AWG	12 AWG	0.79 Nm	7 Lb-In	3	Black	17.5 A	Brass - Nickel Plated	Interlocking (Side)	300 V
TE Connectivity AMP Connectors 796949-8	Brass - Nickel Plated	Through Hole	0.2 in	5.08 mm	1	Brass - Tin Plated	Horizontal with Board	M3	Screw - Rising Cage Clamp	30 AWG	12 AWG	0.79 Nm	7 Lb-In	8	Black	17.5 A	Brass - Nickel Plated	Interlocking (Side)	300 V
