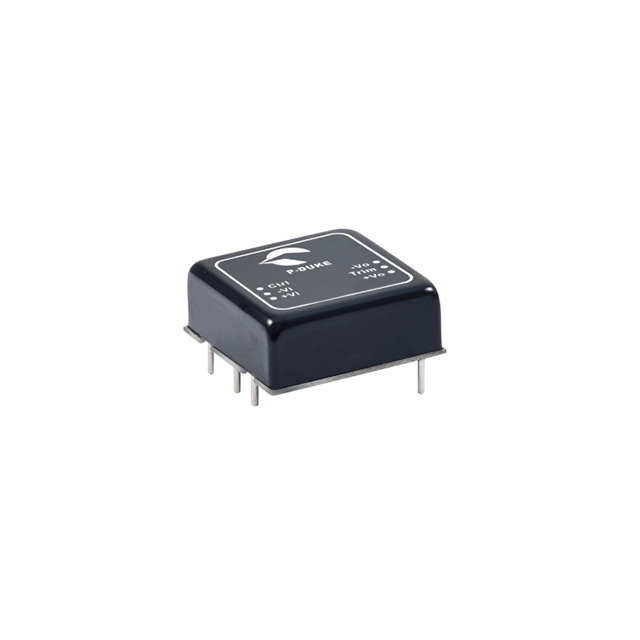

RCD15-24D12W

Active

P-DUKE Technology

DC DC CONVERTER +/-12V 15W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER +/-12V 15W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER +/-12V 15W

Part	Voltage - Output 1	Control Features	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Mounting Type	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Efficiency	Voltage - Output 2	Number of Outputs	Voltage - Isolation	Approval Agency	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Type
P-DUKE Technology RCD15-24D12W	12 V	Active Low, Enable	625 mA	625 mA	9 V	Through Hole	ITE (Commercial)	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	6-DIP Module	90 %	-12 V	2	3000 V	CB, CE, cURus	Remote On/Off, Standby Output	-40 °C	105 C	36 V	15 W	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 625mA, 625mA 9V - 36V Input
