10226-1A10PL

Active

JE150317830 10226-1A10PL=26/MDR/RC/RA/SMTRECP/V2DESIGN/8MIN

Search across all available documentation for this part.

Active

JE150317830 10226-1A10PL=26/MDR/RC/RA/SMTRECP/V2DESIGN/8MIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10226-1A10PL	10226 Series

Connector Style	-	Outer Shroud Contacts
Connector Type	-	Receptacle
Contact Finish	-	Gold
Contact Finish Thickness	-	0.203 - 0.76 µm
Contact Finish Thickness	-	8 - 30 µin
Features	-	Shielded, Board Guide, Board Lock
Flange Feature	-	Housing/Shell, Latchblocks, Housing/Shell (4-40)
Flange Feature	-	2.6 M
Mounting Type	-	Surface Mount, Right Angle, Surface Mount, Through Hole, Right Angle, Panel Mount
null		-
Number of Positions	-	26
Number of Rows	-	2
Termination	-	Solder, Press-Fit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

D SUB CONNECTOR, 26 CONTACTS, RECEPTACLE, SURFACE MOUNT, 102 SERIES

Part	Connector Type	Connector Style	Features	Termination	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature	Mounting Type	Contact Finish
3M 10226-1210PE
3M 10226-1210PE	Receptacle	Outer Shroud Contacts	Board Guide, Shielded	Solder	2	26	0.51 µm	20 µin	Housing/Shell	2.6 M	Surface Mount, Right Angle	Gold
3M 10226-1S10PE	Receptacle	Outer Shroud Contacts	Board Guide, Shielded	Solder	2	26	0.51 µm	20 µin	Housing/Shell	2.6 M	Surface Mount, Right Angle	Gold
3M 10226-1S10PE
3M 10226-2200VE	Receptacle	Outer Shroud Contacts	Board Guide, Shielded	Solder	2	26	0.51 µm	20 µin	Housing/Shell	2.6 M	Surface Mount	Gold
3M 10226-1A10PL
3M 10226-1A10PL	Receptacle	Outer Shroud Contacts	Board Guide, Shielded	Solder	2	26	0.51 µm	20 µin	Housing/Shell	2.6 M	Surface Mount, Right Angle	Gold
3M 10226-55F3PC	Receptacle	Outer Shroud Contacts	Board Lock, Shielded	Solder	2	26	0.76 Ám	30 Áin	Latchblocks		Panel Mount, Right Angle, Through Hole	Gold
3M 10226-R21TS	Receptacle	Outer Shroud Contacts	Shielded	Press-Fit	2	26	0.76 Ám	30 Áin	Housing/Shell	2.6 M	Panel Mount, Through Hole	Gold
3M 10226-R21CS	Receptacle	Outer Shroud Contacts	Shielded	Press-Fit	2	26	0.76 Ám	30 Áin	Housing/Shell	2.6 M	Panel Mount, Through Hole	Gold

General part information

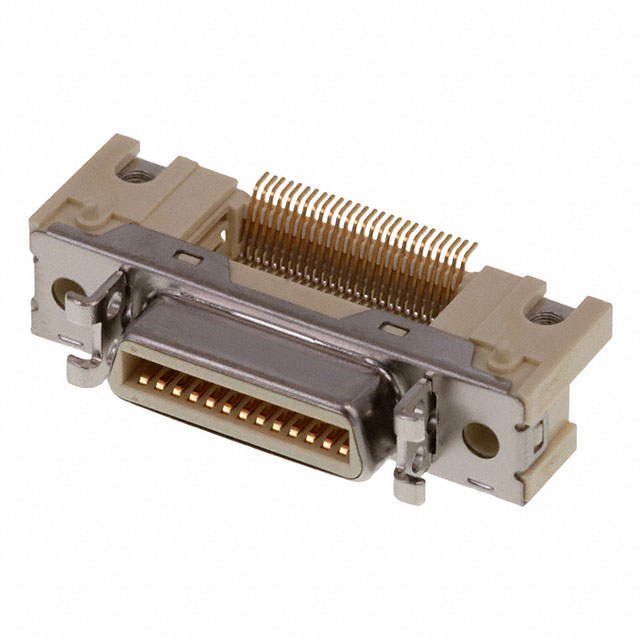

26 Position Receptacle Connector Surface Mount, Right Angle Solder
